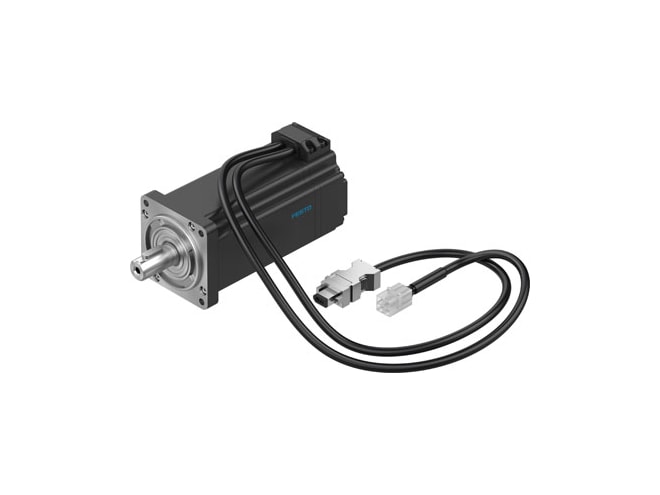

Festo EMMB-AS-60-04-K-S30S Servo Motor

Features

• -15GC ambient temperature
• 40GC ambient temperature
• Up to 60°C with derating of -1.5% per degree Celsius note on ambient temperature
• 4000M max. installation height
• As of 1,000 m: only with derating of -1.0% per 100 m note on max. installation height
• 0 - 90% relative air humidity
• IEC 60034 conforms to standard
• F temperature class as per eN 60034-1
• 155GC max. winding temperature
• S1 rating class as per eN 60034-1
• Digital motor temperature transmission via Nikon A format temperature monitoring
• IM B5 motor type to eN 60034-7
• IM V1 motor type to eN 60034-7
• IM V3 motor type to eN 60034-7
• Optional mounting position
• IP65 degree of protection
• IP40 for motor shaft without rotary shaft seal note on degree of protection
• IP54 for motor shaft with rotary shaft seal note on degree of protection
• IP65 for motor housing without connection technology note on degree of protection
• N concentricity, coaxiality, axial runout to dIN sPEC 42955
• G 2.5 balance quality
• 20000H bearing lifetime under nominal conditions
• DIN 6885 featherkey shaft type
• A 5 x 5 x 16 featherkey shaft type
• Plugs electrical connection 1, connection type
• Connection pattern RE electrical connection 1, connector system
• 6 electrical connection 1, number of connections/cores
• 995792 electrical connection 1, connection pattern
• 2 pollution degree
• RoHS-compliant note on materials
• 0 - No corrosion stress corrosion resistance class cRC
• VDMA24364 zone III lABS (PWIS) conformity
• Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 vibration resistance
• Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 shock resistance
• C UL us - Recognized (OL) approval
• To EU EMC Directive cE mark (see declaration of conformity)
• To EU Low Voltage Directive cE mark (see declaration of conformity)
• In accordance with EU RoHS Directive cE mark (see declaration of conformity)
• To UK instructions for EMC cE marking (see declaration of conformity)
• To UK RoHS instructions cE marking (see declaration of conformity)
• To UK regulations for electrical equipment cE marking (see declaration of conformity)
• UL E342973 certificate issuing authority
• 300V nominal operating voltage dC
• 300V nominal voltage dC
• Star inside type of winding switch
• 3 number of pole pairs
• 1.4NM standstill torque
• 1.27NM nominal torque
• 3.81NM peak torque
• 3000PMI nominal rotary speed
• 6000PMI max. rotational speed
• 10000PMI max. mechanical speed
• 400W nominal power rating of motor
• 2.6A continuous stall current
• 2.4A nominal motor current
• 7.2A peak current
• 0.562NMA motor constant
• 34YUR voltage constant, phase-to-phase
• 5.8OHM phase-phase winding resistance
• 11.5C14 phase-phase winding inductance
• 1.98MS electric time constant
• 255 x 255 x 8 mm, aluminium measuring flange
• 0.405KGC total mass moment of inertia of output
• 1600G product weight
• 90N permissible axial shaft load
• 180N permissible radial shaft load
• Absolute single-turn encoder rotor position sensor
• SAR-ML50AJC00 rotor position sensor, manufacturer designation
• 1 rotor position sensor, absolute detectable revolutions
• Nikon A-format rotor position encoder interface
• Optical rotor position sensor, encoder measuring principle
• 5V rotor position sensor, dC operating voltage
• 1048576 rotor position sensor, position values per revolution
• 20BIT rotor position transducer resolution
• -120ARS rotor position sensor, system accuracy of angle measurement
• 120ARS rotor position sensor, system accuracy of angle measurement
• -20GC to 55GC storage temperature
• 4.75 to 5.25V rotor position sensor, DC operating voltage range
