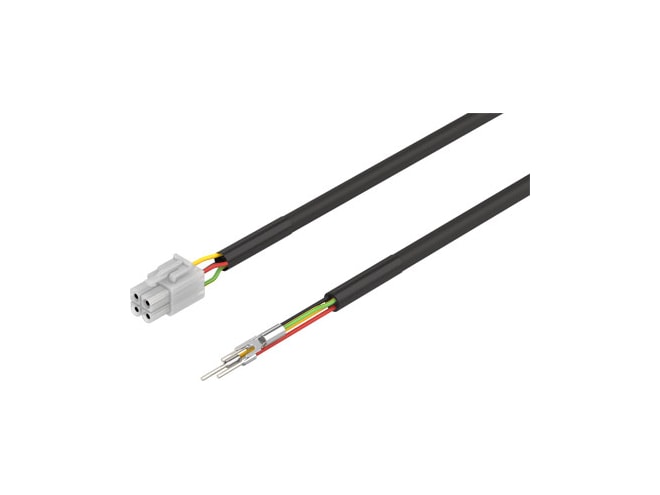

Festo NEBM-H6G4-E-5-Q13N-LE4 Motor Cable

$84.89
Part Numbers
  • NEBM-H6G4-E-5-Q13N-LE4
  • 5219198
Highlights...

Features

  • Without inscription label holder cable designation
  • Field device side electrical connection 1, function
  • Angular electrical connection 1, design
  • Socket electrical connection 1, connection type
  • Straight electrical connection 1, cable outlet
  • Connection pattern H6, coded for motor electrical connection 1, connector system
  • 4 electrical connection 1, number of connections/cores
  • 4 electrical connection 1, used connections/cores
  • 995790 electrical connection 1, connection pattern
  • Controller side electrical connection 2, function
  • Cable electrical connection 2, connection type
  • Open end electrical connection 2, connector system
  • 4 electrical connection 2, number of connections/cores
  • 4 electrical connection 2, used connections/cores
  • 0V operational voltage range dC
  • 300V operational voltage range dC
  • 0V operational voltage range aC
  • 300V operational voltage range aC
  • 9.5A current rating at 40° c
  • 2KV immunity to surge
  • 5M cable length
  • Suitable for energy chains cable characteristic
  • Test conditions on request test conditions cable
  • 55MM bending radius, fixed cable
  • 55MM bending radius, moving cable
  • 7.3MM cable diameter
  • 4 x 0.79 mm² cable structure
  • 0.79I2 nominal cross section conductor
  • AWG18 conductor nominal cross section
  • Wire end sleeve wire ends
  • IP20 degree of protection
  • In assembled state note on degree of protection
  • -25GC ambient temperature
  • 90GC ambient temperature
  • -25GC ambient temperature with moving cable
  • 90GC ambient temperature with moving cable
  • To EU Low Voltage Directive cE mark (see declaration of conformity)
  • In accordance with EU RoHS Directive cE mark (see declaration of conformity)
  • To UK RoHS instructions cE marking (see declaration of conformity)
  • To UK regulations for electrical equipment cE marking (see declaration of conformity)
  • VDMA24364 zone III lABS (PWIS) conformity
  • RoHS-compliant note on materials
  • 3 pollution degree
  • 0 - No corrosion stress corrosion resistance class cRC
  • PVC material cable sheath
  • Black cable sheath colour
  • PA material housing
  • White housing colour
  • PVC material insulating sheath
