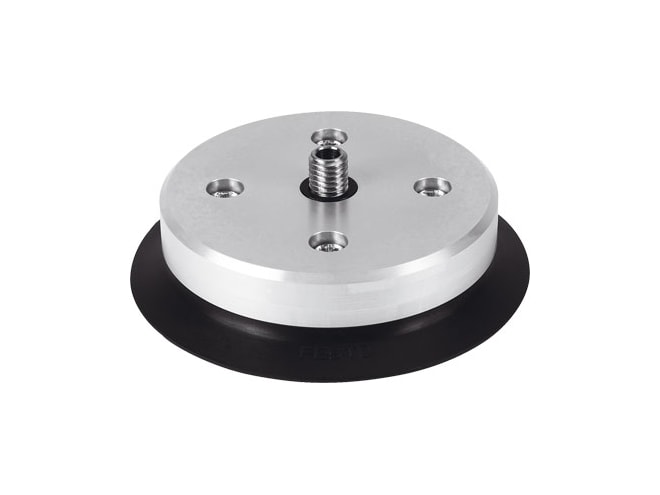

Festo ESS-150-SN Suction Cup Complete

150mm diameter, Round, standard vacuum suction cup with Standard Nitrile rubber material and Threaded connection M20x2. View other configurations.

$290.63
Part Numbers
  • ESS-150-SN
  • 189326
Highlights...

Features

  • 480MM min. workpiece radius
  • 10MM nominal size
  • 150MM suction cup diameter
  • 173.826CCM suction cup volume
  • Top position of connection
  • Optional mounting position
  • 991485 symbol
  • Size 6 correlation to suction-cup holder
  • Round, flat suction cup shape
  • -0.095KPA operating pressure
  • 0KPA operating pressure
  • -0.95BAR operating pressure
  • 0BAR operating pressure
  • -13.775PSI operating pressure
  • 0PSI operating pressure
  • -0.07KPA nominal operating pressure
  • -0.7BAR nominal operating pressure
  • -10.15PSI nominal operating pressure
  • Atmospheric air based on ISO 8573-1:2010 [7:-:-] operating medium
  • 1 - Low corrosion stress corrosion resistance class cRC
  • VDMA24364-A1-L lABS (PWIS) conformity
  • See supplementary material information suitable for use with food
  • 900N holding force at nominal operating pressure
  • 675N lateral force at nominal operating pressure
  • 719G product weight
  • Via vacuum port type of mounting
  • M20x2 vacuum connection
  • Black colour
  • 50 +/- 5 shore hardness
  • NBR material screwed plug
  • Nickel-plated steel material screwed plug
  • Steel, galvanised and chrome-plated material screwed plug
  • RoHS-compliant note on materials
  • NBR material suction cup
  • -10GC ambient temperature to 70GC ambient temperature
