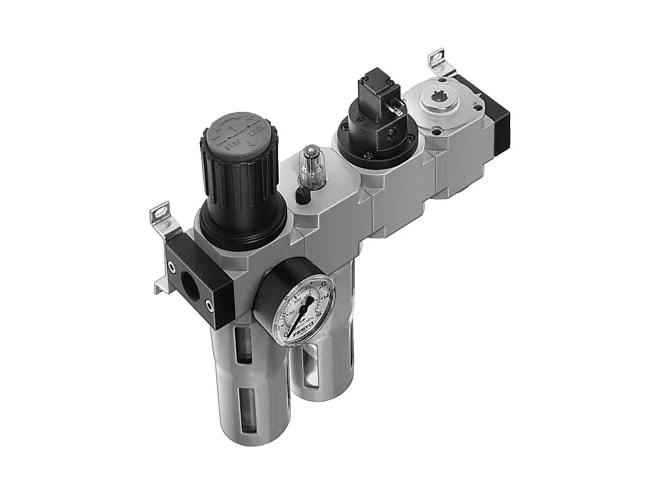

Festo FRC-3/4-D-MAXI-KE-A Service Unit Combination

Features

• Maxi size
• D series
• Rotary knob with detent actuator lock
• Vertical +/-5° mounting position
• 40MIM grade of filtration
• Fully automatic condensate drain
• On/off valve design
• Filter regulator with pressure gauge design
• Proportional standard mist lubricator design
• Safety start-up valve design
• 80CCM max. condensate volume
• Metal bowl guard bowl guard
• 991764 symbol
• With pressure gauge pressure gauge (ANALOG) or pressure display (DIGITAL)
• 0.3BAR max. pressure hysteresis
• 3800L2 standard nominal flow rate
• Compressed air to ISO 8573-1:2010 [-:-:-] operating medium
• Inert gases operating medium
• 2 - Moderate corrosion stress corrosion resistance class cRC
• VDMA24364-B1/B2-L lABS (PWIS) conformity
• Compressed air to ISO 8573-1:2010 [7:4:-] air purity class at output
• Inert gases air purity class at output
• -10GC media temperature
• 60GC media temperature
• 4200G product weight
• Either: type of mounting
• In-line installation type of mounting
• With accessories type of mounting
• Die-cast zinc material housing
• PC material bowl
• 3BAR to 12BAR operating pressure
• 2.5BAR to 12BAR pressure regulation range
• -10GC ambient temperature to 60GC ambient temperature
• Pneumatic connection g3/4 , port 1
• Pneumatic connection g3/4 , port 2
