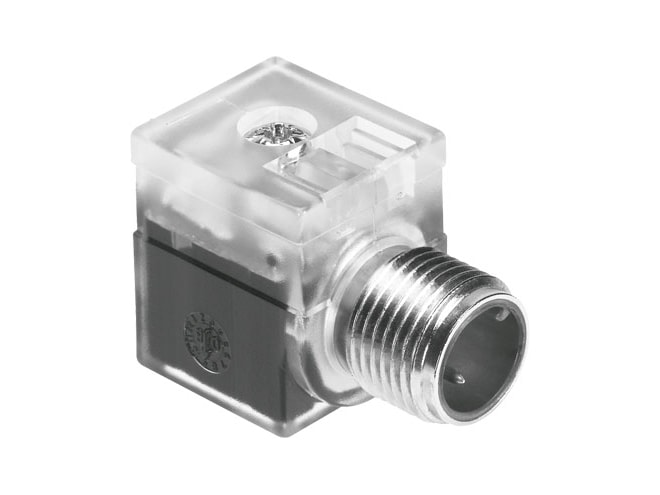

Festo MSSD-EB-M12-MONO Plug Socket

$49.59
Part Numbers
  • MSSD-EB-M12-MONO
  • 188024
Highlights...

Features

  • EN 175301-803 based on standard
  • EN 61076-2-101 based on standard
  • EN 61984 based on standard
  • LED switching position indicator
  • On solenoid valve via M2.5 central screw type of mounting
  • 13.18G product weight
  • Socket, to EN 175301-803, type C electrical connection 1
  • Straight plug connector, M12x1, 2-pin, A-coded electrical connection 2
  • 12V operational voltage range dC
  • 24V operational voltage range dC
  • 24V nominal operating voltage dC
  • 12V operational voltage range aC
  • 24V operational voltage range aC
  • 0.12A permissible current load
  • 2.5KV immunity to surge
  • IP65 degree of protection
  • VDMA24364-B2-L lABS (PWIS) conformity
  • 3 pollution degree
  • 2 - Moderate corrosion stress corrosion resistance class cRC
  • PA material housing
  • Transparent housing colour
  • Nickel-plated steel material screw-type lock
  • HNBR material seals
  • NBR material seals
  • Silver-plated copper alloy material electrical contact
  • Gold-plated brass material electrical contact
  • -10GC ambient temperature to 50GC ambient temperature
