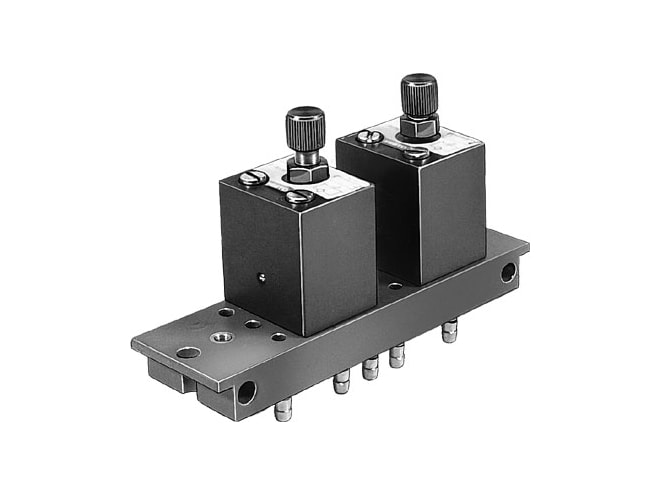

Festo GRF-PK-3X2 One-way Flow Control Valve

Stop/flow control with 2 valves, non-return function, 3mm barb fitting pneumatic connection, and mounting via Through-hole (for mounting frame 2N). View other configurations.

$469.23
Part Numbers
  • GRF-PK-3X2
  • 4566
Highlights...

Features

  • One-way flow control function valve function
  • Knurled screw adjustment component
  • With through-hole type of mounting
  • 45L2 standard nominal flow rate in flow control direction
  • 45L2 standard nominal flow rate in blocked direction
  • Wrought aluminium alloy material housing
  • Optional mounting position
  • 991453 symbol
  • Compressed air to ISO 8573-1:2010 [7:-:-] operating medium
  • Lubricated operation possible (in which case lubricated operation will always be required) note on operating and pilot medium
  • VDMA24364-B1/B2-L lABS (PWIS) conformity
  • -10GC media temperature
  • 60GC media temperature
  • 145G product weight
  • Brass material adjusting screw
  • 0.5BAR to 8BAR operating pressure
  • -10GC ambient temperature to 60GC ambient temperature
  • Pneumatic connection pK-3 , port 1
  • Pneumatic connection pK-3 , port 2
View other configurations.
