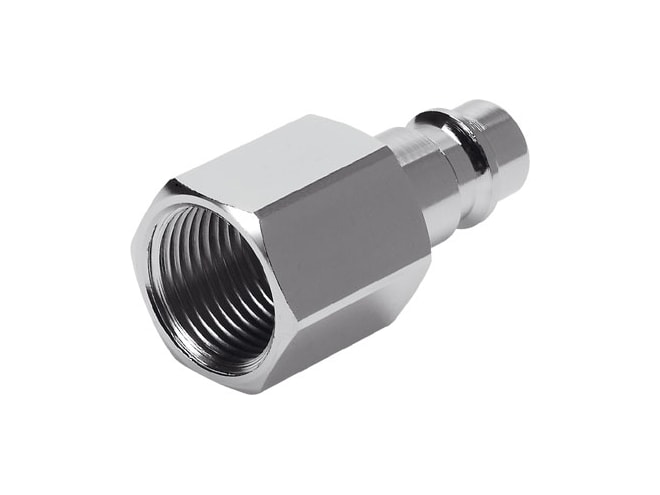

Festo KS4-1/4-I Quick Coupling Plug

$6.34
Part Numbers
  • KS4-1/4-I
  • 531678
Highlights...

Features

  • 7.85MM nominal size
  • -0.095MPA operating pressure complete temperature range
  • 1.2MPA operating pressure complete temperature range
  • -0.95BAR operating pressure complete temperature range
  • 12BAR operating pressure complete temperature range
  • -13.775PSI operating pressure complete temperature range
  • 174PSI operating pressure complete temperature range
  • 720L2 standard nominal flow rate
  • 1161L2 standard nominal flow rate
  • 780.5L2 nominal flow rate standardised according to iSO 8778
  • 1258.5L2 nominal flow rate standardised according to iSO 8778
  • Compressed air to ISO 8573-1:2010 [7:-:-] operating medium
  • Lubricated operation possible note on operating and pilot medium
  • 1 - Low corrosion stress corrosion resistance class cRC
  • VDMA24364-B1/B2-L lABS (PWIS) conformity
  • 9.5NM nominal torque
  • ± 15% tolerance for nominal tightening torque
  • 31G product weight
  • RoHS-compliant note on materials
  • Brass, nickel plated information on materials
  • -10GC ambient temperature to 60GC ambient temperature
  • Pneumatic connection female thread G1/4 , port 1
