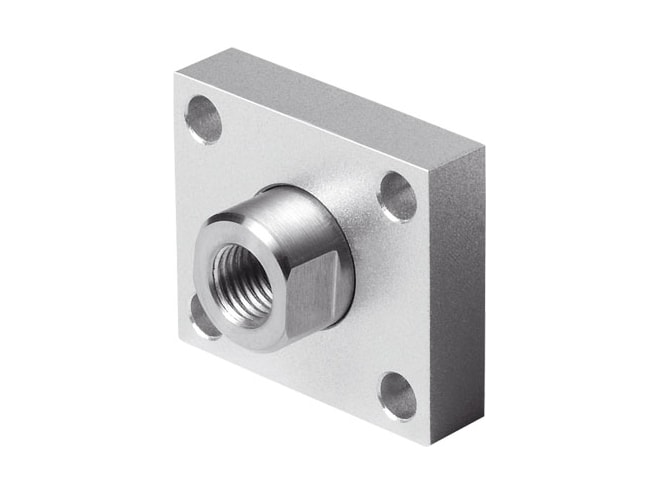

Festo KSZ-M6 Coupling Piece

Features

• M6 size
• Optional mounting position
• Female thread M6 threaded connection
• 1 - Low corrosion stress corrosion resistance class cRC
• VDMA24364-B2-L lABS (PWIS) conformity
• Metals with more than 1% copper by mass are excluded from use. Exceptions are printed circuit boards, cables, electrical plug connectors and coils suitability for the production of li-ion batteries
• 45G product weight
• RoHS-compliant note on materials
• Steel material mounting
• Galvanised material mounting
• Steel material thread piece
• Galvanised material thread piece
• -40GC ambient temperature to 150GC ambient temperature
