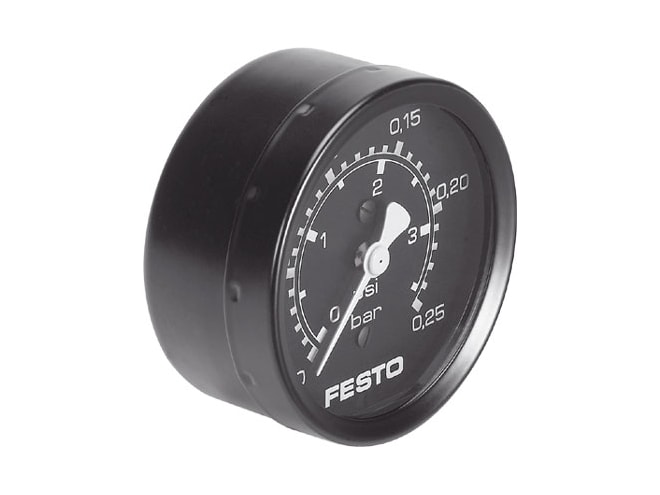

Festo MA-63-0,25 Pressure Gauge

Pressure gauge with 63mm diameter and 0 to 0.25 PSI display range. View other configurations.

$229.74
Part Numbers
  • MA-63-0,25
  • 7169
Highlights...

Features

  • 0BAR indicating range
  • 0.25BAR indicating range
  • 0PSI indicating range
  • 3.6PSI indicating range
  • 991463 symbol
  • DIN EN 837-3 conforms to standard
  • 63 nominal size of pressure gauge
  • In-line installation type of mounting
  • Liquid media operating medium
  • Gaseous media operating medium
  • 0.9 alternating load factor
  • 0.75 continuous load factor
  • 1.6 measurement accuracy class
  • IP43 degree of protection
  • -20GC media temperature
  • 80GC media temperature
  • VDMA24364-B1/B2-L lABS (PWIS) conformity
  • Centred, rear side position of connection
  • Brass material screwed plug
  • Steel material housing
  • PMMA material screen
  • 180G product weight
  • No acetylene note on operating and pilot medium
  • No oxygen note on operating and pilot medium
  • 0BAR to 0.25BAR operating pressure
  • -20GC ambient temperature to 60GC ambient temperature
  • Pneumatic connection g1/4
