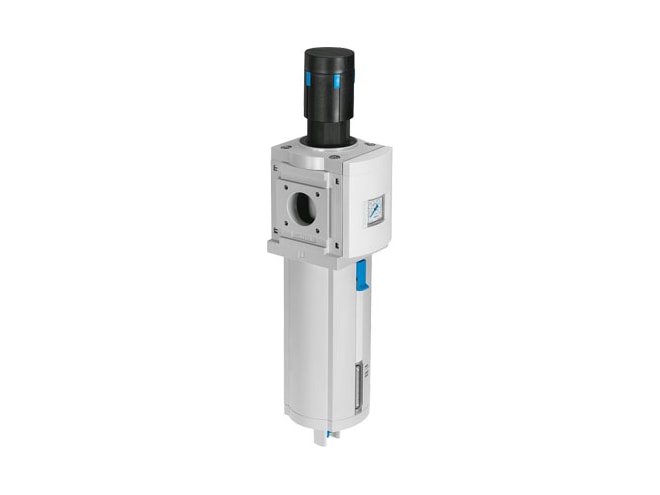

Festo MS9 Series Filter Regulator

Reliable regulation characteristics with minimal pressure hysteresis and primary pressure compensation.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Learn more about this configuration...
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 10,000 to 23,000l/min flow rate
  • 1 to 20bar operating pressure
  • Four pressure regulation ranges:
    • 0.5 to 4bar
    • 0.5 to 7bar
    • 0.5 to 12bar
    • 0.5 to 16bar
  • Choice of 5 or 40μm filter inserts
  • Air purity class at the output:
    • 5μm: Compressed air to ISO 8573-1:2010 [6:4:4]
    • 40μm: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Good particle and condensate separation
  • Piloted or directly actuated
  • Available with or without secondary exhausting
  • Pressure gauge connection for different mounting options
  • Optionally with manual, semi-automatic, fully automatic, or electrically actuated fully auto condensate drain
  • Actuator lock to protect the set values from being adjusted
  • Optional pressure sensor
  • Optional device variant EX4 for use in potentially explosive areas in zones 1, 2, 21, and 22

The Festo MS9 Series Filter Regulator provides all functions for the preparation of compressed air: valves for pressure regulation, shut off, filter regulation, and soft start, with safety function. It provides good regulation characteristics with minimal pressure hysteresis and primary pressure compensation.

In this device, the filter and pressure regulator are combined in one unit. The sintered filter with water separator removes contamination, pipe scale, rust and condensate from the compressed air.
