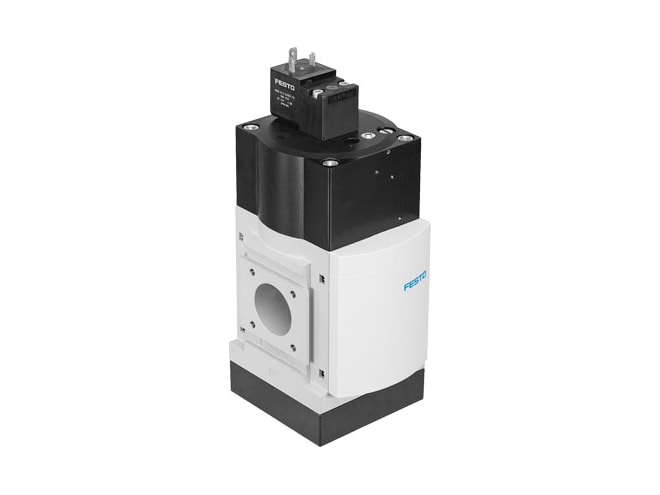

Festo MS9-SV-G-C-V24-S-VS Soft Start/Quick Exhaust Valve

3/2-way, closed, monostable soft-start valve from the MS Series compressed air systems product family. 0 to 60°C temperature range, up to 16550 l/min.

$647.73
Part Numbers
  • MS9-SV-G-C-V24-S-VS
  • 570737
Highlights...

Features

  • Operating medium: compressed air (ISO 8573-1:2010 [7:4:4])
    • Lubricated operation possible
  • Width: 90mm
  • Safety function: exhausting
  • Actuation: electric, pilot-controlled
  • Sealing principle: soft
  • Reset method: mechanical spring
  • Operating pressure: 0.35 to 1.6MPa (3.5 to 16bar)
  • Standard nominal flow rate: 8300 to 16550 l/min
  • Media temperature range: 0 to 60°C
  • Materials: die-cast aluminum, NBR, brass, aluminum alloy
  • Pressure gauge connection: G1/8, G1/4
  • Pneumatic connection 3: G1, 1NPT
  • Voltage: 24 V
  • Shock, vibration and corrosion resistance

The Festo MS9-SV-G-C-V24-S-VS Soft Start/Quick Exhaust Valve is a component of the Festo MS Series compressed air systems. This unit is a monostable, piston gate valve with electric actuation, built for exhausting compressed air systems up to Performance Level e, certified to EN ISO 13849-1. This includes an operating pressure of up to 16bar, with a standard flow rate of 8300 to 16550 l/min (up to 21720 l/min exhaust, 6 to 0bar). With an IP65 rating, vibration, shock and corrosion resistance(class 2), the MS9-SV-G-C-V24-S-VS is a durable design built to last. The modular structure of this product means easy integration with other MS Series instruments to assemble custom application solutions.
