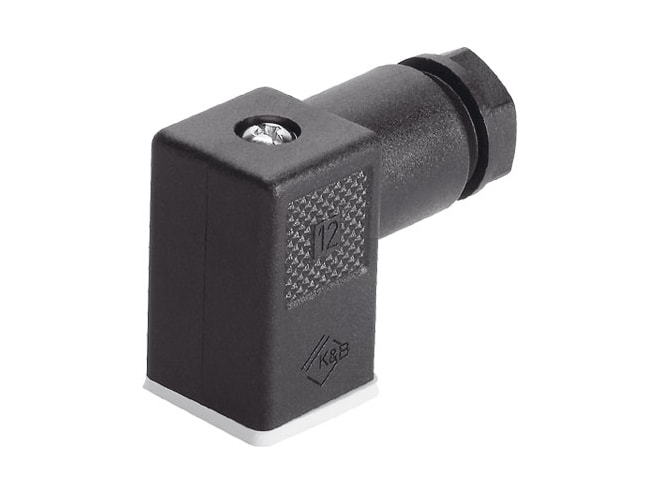

Festo MSSD-EB-M12 Plug Socket

Features

• 50 frequency of connection
• On solenoid valve via M2.5 central screw type of mounting
• Optional mounting position
• 11G product weight
• 3-pin electrical connection
• Angled socket electrical connection
• Type C electrical connection
• To DIN EN 175301-803 electrical connection
• Square design electrical connection
• M12 cable fitting
• 1.5I2 connection cross section
• IP65 degree of protection
• To IEC 60529 degree of protection
• VDMA24364-B2-L lABS (PWIS) conformity
• PA-reinforced material housing
• HNBR material seals
• -40GC ambient temperature to 125GC ambient temperature
• 4MM to 6MM permissible cable diameter
