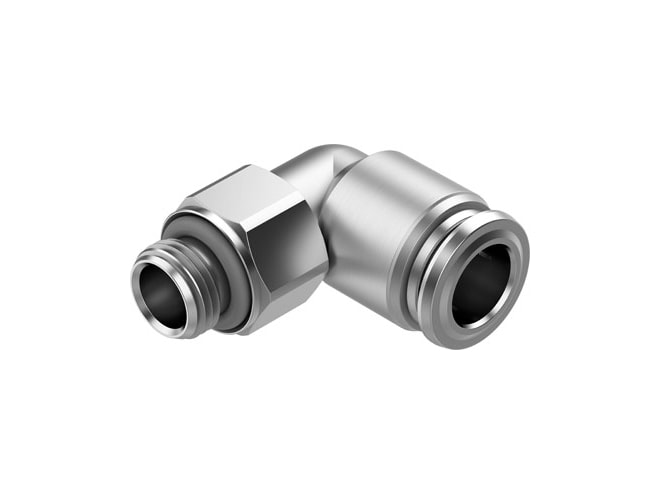

Festo NPQR-L-G18-Q8 Push-in Fitting

$55.80

Part Numbers

NPQR-L-G18-Q8
8085682

Highlights...

NPQR-L-G18-Q8
By Festo
FREE Shipping on orders of $1,000 or more
Manufacturer has 354 in stock.
Additional 2-3 days to process. Call for expedite options.

Features

Standard size
6MM nominal size
13MM tubing insertion depth
Sealing ring type of seal on screwed plug
Optional mounting position
L-shape design
1 size of pack
Push-pull principle design
997424 symbol
-0.095MPA operating pressure complete temperature range
1.6MPA operating pressure complete temperature range
-0.95BAR operating pressure complete temperature range
16BAR operating pressure complete temperature range
-13.775PSI operating pressure complete temperature range
232PSI operating pressure complete temperature range
Water: max. 0.7 MPa at 0 - 80 °C note on operating pressure
NSF C0556009 certificate issuing authority
Compressed air to ISO 8573-1:2010 [7:-:-] operating medium
Water (liquid, ice-free) operating medium
Lubricated operation possible note on operating and pilot medium
4 - Very high corrosion stress corrosion resistance class cRC
VDMA24364-B2-L lABS (PWIS) conformity
Metals with more than 1% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils suitability for the production of li-ion batteries
Class 4 according to ISO 14644-1 cleanroom class
See declaration of conformity suitable for use with food
NSF/ANSI 169 suitable for use with food
6NM nominal torque
± 20% tolerance for nominal tightening torque
23.5G product weight
External hexagon, A/F 13 mm type of mounting
RoHS-compliant note on materials
High-alloy stainless steel material housing
FPM material thread seal
High-alloy stainless steel guard ring material
High-alloy stainless steel material release ring
FPM material tubing seal
High-alloy stainless steel material tubing clamp component
PPSU thrust ring material
-20GC ambient temperature to 150GC ambient temperature
Pneumatic connection male thread G1/8 , port 1
Pneumatic connection for tubing outside diameter of 8 mm , port 2

Spec Sheets

Festo NPQR-L-G18-Q8 Push-in Fitting Datasheet (108 KB)

Other

Festo NPQR-L-G18-Q8 Push-in Fitting CAD Diagram (86 KB)
