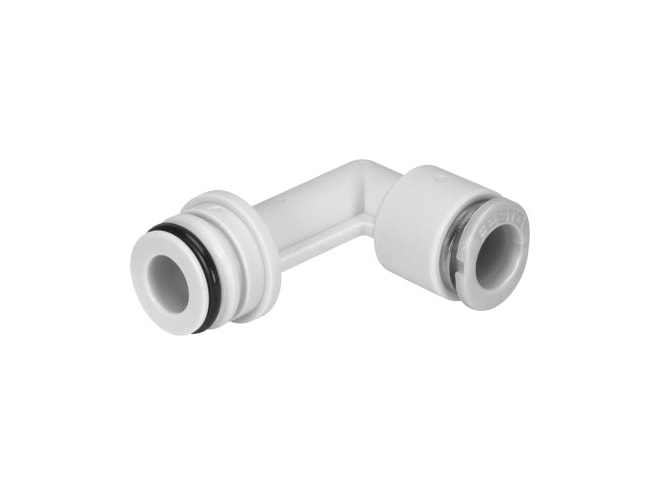

Festo QSPLLKG14-1/4-U Cartridge

Name: Festo QSPLLKG14-1/4-U Cartridge
Price: 31.3 USD
Availability: InStock

Push in cartridge with L-shape, long design for 14mm to 1/4in connection. View other configurations.

$31.30

Part Numbers

QSPLLKG14-1/4-U
132944

Highlights...

QSPLLKG14-1/4-U
By Festo
FREE Shipping on orders of $1,000 or more
Manufacturer has 199 in stock.
Additional 2-3 days to process. Call for expedite options.

Features

Mini size
3.4MM nominal size
Optional mounting position
L-shape, long design
10 size of pack
Push-pull principle design
-0.095MPA operating pressure complete temperature range
1MPA operating pressure complete temperature range
-0.95BAR operating pressure complete temperature range
10BAR operating pressure complete temperature range
-13.775PSI operating pressure complete temperature range
145PSI operating pressure complete temperature range
See certificate maritime classification
Compressed air to ISO 8573-1:2010 [7:-:-] operating medium
Lubricated operation possible note on operating and pilot medium
1 - Low corrosion stress corrosion resistance class cRC
VDMA24364-B1/B2-L lABS (PWIS) conformity
-5GC ambient temperature
60GC ambient temperature
3.9G product weight
Mounting pin type of mounting
23FA ambient temperature
140FA ambient temperature
Grey colour of release ring
RoHS-compliant note on materials
PA-reinforced material housing
POM material release ring
NBR material tubing seal
High-alloy stainless steel material tubing clamp component
Pneumatic connection cartridge 14 mm , port 1
Pneumatic connection for tubing outside diameter of 1/4" , port 2

View other configurations.

Spec Sheets

Festo QSPLLKG14-1/4-U Cartridge Datasheet (65 KB)

Other

Festo QSPLLKG14-1/4-U Cartridge CAD Diagram (94 KB)
