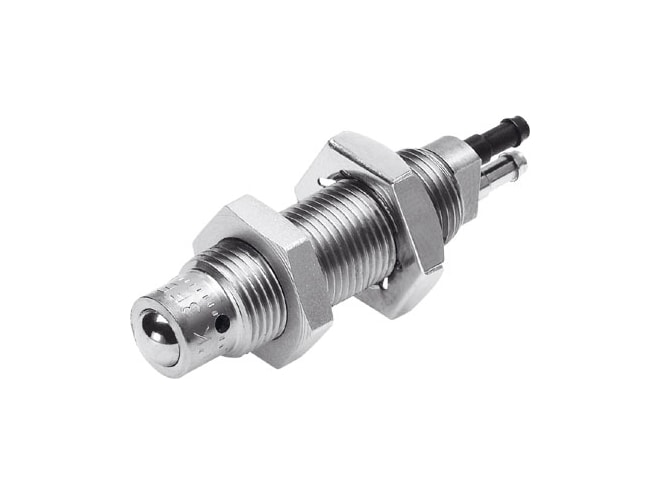

Festo SVK-3-PK-3 Limit Valve

Directly actuated end stop limit switch. 50 l/min flow rate. 20N actuating force. View other configurations.

$206.69
Part Numbers
  • SVK-3-PK-3
  • 12146
Highlights...

Features

  • 3/2-way, closed, monostable valve function
  • Mechanical type of actuation
  • 50L2 standard nominal flow rate
  • Ball seat design
  • Mechanical spring type of reset
  • 1.5MM nominal size
  • Soft sealing principle
  • Optional mounting position
  • Direct type of piloting
  • Non-reversible flow direction
  • 991097 symbol
  • Compressed air to ISO 8573-1:2010 [7:4:4] operating medium
  • Lubricated operation possible (in which case lubricated operation will always be required) note on operating and pilot medium
  • VDMA24364 zone III lABS (PWIS) conformity
  • -10GC media temperature
  • 80GC media temperature
  • With through-hole type of mounting
  • -0.9BAR to 8BAR operating pressure
  • -10GC ambient temperature to 80GC ambient temperature
  • Pneumatic connection pK-3 , port 1
  • Pneumatic connection pK-3 , port 2
  • Pneumatic connection not ducted , port 3
