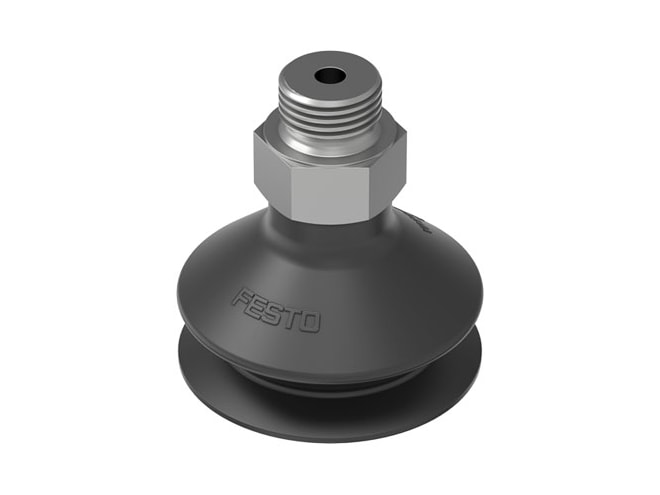

Festo VASB-40-1/4-NBR Suction Cup Complete

40mm diameter suction cup with G1/4 vacuum port. View other configurations.

$32.10
Add to NetSuite
Part Numbers
  • VASB-40-1/4-NBR
  • 35413
Highlights...

Features

  • 4MM nominal size
  • 40MM suction cup diameter
  • 32MM effective suction diameter
  • Top position of connection
  • 991485 symbol
  • Round bellows 1.5 convolutions suction cup shape
  • -0.095MPA operating pressure
  • 0MPA operating pressure
  • -0.95BAR operating pressure
  • 0BAR operating pressure
  • -13.775PSI operating pressure
  • 0PSI operating pressure
  • -0.07MPA nominal operating pressure
  • -0.7BAR nominal operating pressure
  • -10.15PSI nominal operating pressure
  • Atmospheric air based on ISO 8573-1:2010 [7:-:-] operating medium
  • VDMA24364-A1-L lABS (PWIS) conformity
  • 56N breakaway force at 70% vacuum
  • 56N holding force at nominal operating pressure
  • G1/4 mounting thread
  • G1/4 suction cup mounting
  • G1/4 vacuum connection
  • Black colour
  • 60 +/- 5 shore hardness
  • Die-cast zinc material screwed plug
  • RoHS-compliant note on materials
  • NBR material suction cup
  • -20GC ambient temperature to 80GC ambient temperature
