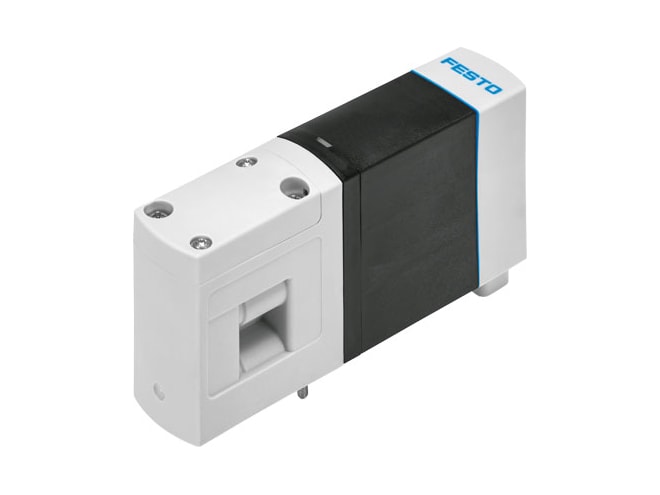

Festo VEVM-S1-27-B-C-F-1T1L Valve

Functionality assignable via Motion app.

$655.71
Part Numbers
  • VEVM-S1-27-B-C-F-1T1L
  • 8047503
Highlights...

Features

  • 27mm valve size
  • 28mm grid dimension
  • Piston seat design
  • Soft sealing principle
  • Electric type of actuation
  • Pilot actuated type of piloting
  • Mechanical spring type of reset
  • Optional mounting position
  • Without flow control option exhaust-air function
  • External pilot air supply
  • Yes suitability for vacuum
  • Non-reversible flow direction
  • IP65 degree of protection
  • VDMA24364 zone III lABS (PWIS) conformity
  • RoHS-compliant note on materials
  • PA material housing
  • NBR material seals
  • TPE-U(PU) material seals
  • UL94 HB fire test material
  • See supplementary material information suitable for use with food
  • 200G product weight
  • 8.5MS switching time on
  • 8.5MS switching time off
  • 4.2MM nominal size
  • 2LSB c value
  • 1000L2 standard flow rate 0.8->0 mPa (8->0 bar, 116->0 psi)
  • 450L2 standard nominal flow rate, air flow 0.6->0,5 mPa (6->5 bar, 87->72.5 psi)
  • 480L2 standard nominal flow rate, exhaust 0.6->0.5 mPa (6->5 bar, 87->72.5 psi)
  • Blue LED = normal status status indication
  • Red LED = malfunction status indication
  • Compressed air to ISO 8573-1:2010 [7:4:4] operating medium
  • Inert gases operating medium
  • Compressed air to ISO 8573-1:2010 [7:4:4] pilot medium
  • Inert gases pilot medium
  • Lubricated operation not possible note on operating and pilot medium
  • Condensation in the valve not allowed note on operating and pilot medium
  • 0.3MPA operating pressure
  • 0.8MPA operating pressure
  • 3BAR operating pressure
  • 8BAR operating pressure
  • 43.5PSI operating pressure
  • 116PSI operating pressure
  • 0.3MPA pilot pressure
  • 0.8MPA pilot pressure
  • 3BAR pilot pressure
  • 8BAR pilot pressure
  • 43.5PSI pilot pressure
  • 116PSI pilot pressure
  • 0 - 8 bar with external pilot air note on operating pressure
  • Vacuum operation at connection 3 only note on operating pressure
  • 24V nominal operating voltage dC
  • +/- 25% permissible voltage fluctuations
  • 100% duty cycle
  • 1.5W electrical power consumption
  • 2 - Moderate corrosion stress corrosion resistance class cRC
  • 5GC media temperature
  • 50GC media temperature
  • 0 - 90% relative air humidity
  • M5 pilot air port 14
  • M7 pilot exhaust port 84
  • M7 breather connection
  • 5GC ambient temperature to 50GC ambient temperature
  • -20GC to 40GC storage temperature
  • Pneumatic connection g1/8 , port 2
  • Pneumatic connection g1/8 , port 4
  • Pneumatic connection g3/8 , port 1
  • Pneumatic connection g3/8 , port 3

The Festo VEVM-S1-27-B-C-F-1T1L Valve consists of 4 wired piezo pilot-controlled piston seat valves. It features low leakage with the function of a proportional pressure regulator.
