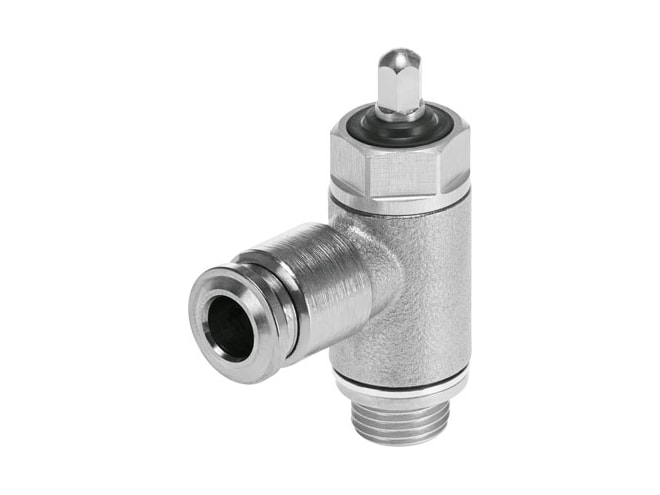

Festo VFOH Series One-way Flow Control Valve

Corrosion-resistant shut-off/flow control valve.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open 8:00 am to 5:30 pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Learn more about this configuration...
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 180 to 520l/min standard nominal flow rate in flow control direction
  • 103 to 535l/min standard nominal flow rate in blocked direction
  • 0.2 to 10bar operating pressure range
  • Manual actuation
  • Screw-in mounting
  • 3 or 5Nm nominal torque
  • +/-10% tolerance for nominal tightening torque

The Festo VFOH Series One-way Flow Control Valve applies an external hexagon head as an actuating element, and can be rotated horizontally through 360° when mounted. The speed can be adjusted using exhaust air flow control. Free flowing supply air and throttled exhaust air ensure that the piston moves between the air cushions. This improves motion, even when the load changes.
