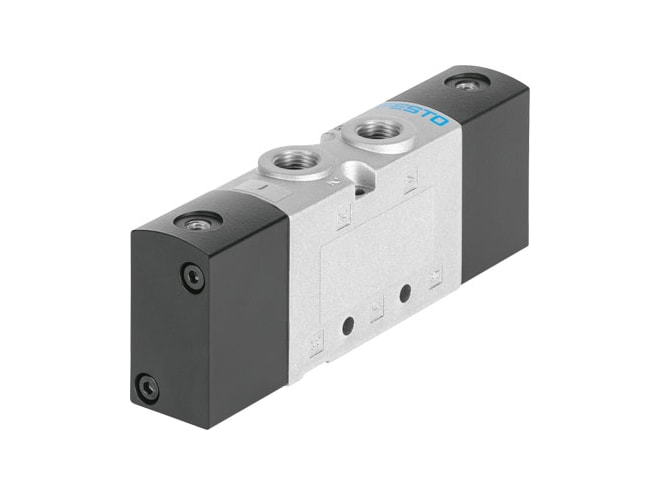

Festo VUWS Series Pneumatic Valve

Name: Festo VUWS Series Pneumatic Valve
Price: 46.76 USD
Availability: InStock

1,800 to 2,300 l/min flow rate with wide range of valve functions.

Highlights...

By Festo
FREE Shipping on orders of $1,000 or more
Some models in stock. View available part numbers.

Features

Design principle options:
- Poppet seat, soft-sealing
- Pistol spool with sealing cartridge
Size 20, 25, or 30 options
In-line valves can be used as individual or manifold valves
Variable pressure zones, and wide range of mounting options
Ergonomic and safe operation
Pre-assembled units on rails, with individual valves assembled ready for operation
Supply manifolds for mounting on both sides
Secure wall mounting or H-rail mounting

The Festo VUWS Series Pneumatic Valve is designed to be used without being linked pneumatically. All pneumatic connections are on the valve and can be equipped with fittings/tubing. By using a special seal set, the in-line valves can also be mounted on a manifold rail (pneumatic linking) as semi-in-line valves. The VUWS includes a sturdy design that enables it to be used in harsh environments. The valve is well suited for controlling cylinders or compressed air networks for easy clamping and locking processes in semi-automatic assembly and manufacturing.
