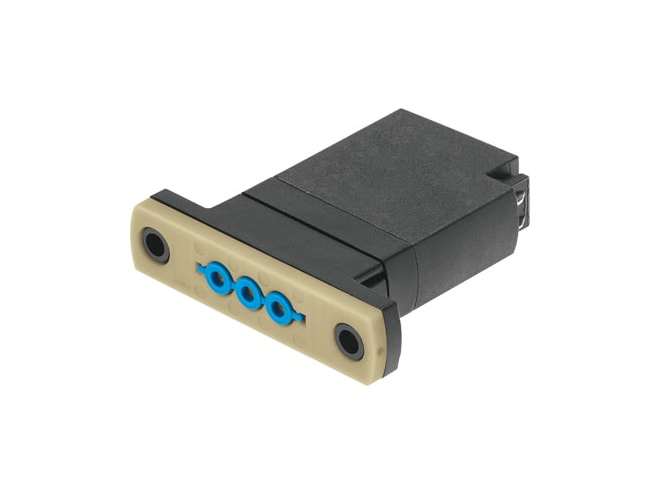

Festo VYKA Series Solenoid Valve

Compact 7mm width for maximum performance and precision in small spaces.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open 8:00 am to 5:30 pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Learn more about this configuration...
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • Rocker valve with diaphragm seal
  • Mechanical spring reset method
  • 1.2mm nominal width
  • 7.5mm grid dimension
  • Flange fluid connection
  • 7.2 to 11 l/min standard nominal flow rate
  • 0.22 to 0.35 l/min flow rate Kv
  • 0.3 to 0.5 l/min water flow rate at max. operating pressure
  • Easy to clean due to media separation
  • Low media consumption due to small internal volume
  • Materials in contact with media conform to FDA-listed materials
  • Suitable for aggressive media, extremely small volumes and dosing tasks
  • Low power consumption from holding current reduction
  • 3/2-way and 2/2-way variants
  • Developed according to ISO 13485

The Festo VYKA Series Solenoid Valve is designed for installation in laboratory devices. The valve is used to control gaseous and liquid media within the limits of the technical data. The chemical resistance of the valve materials coming into contact with the media must be checked for each application.

The VYKA is a directly actuated directional control valve with a solenoid coil. In a de-energized state, the valve automatically returns to its normal position. Normally closed and normally open variants are available. The VYKA is additionally available in variants with or without vacuum technology.
