Aventics SSI-DA-063-0015-7-02-2-000-000-00 Pneumatic Linear Actuator

Standard cylinders, ISO 15524, Short-stroke cylinder, Piston rod cylinders, ISO cylinder. View other configurations.

$225.00
Part Numbers
  • SSI-DA-063-0015-7-02-2-000-000-00
  • R480637984
Highlights...

Features

  • Bore Size: 63 mm
  • Compressed air connection: G 1/4
  • Cushioning: Elastic cushioning

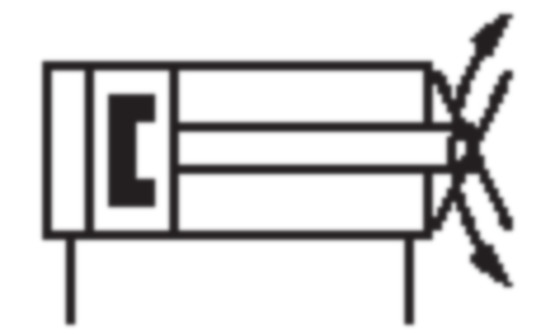

  • Cylinder Function: Double-acting
  • Environmental requirements: Industry standard
  • Industry: Industrial
  • Magnetic piston: Piston with magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 1964 N
  • Piston force retracting: 1766 N
  • Piston rod modification: non-rotating, with front plate
  • Piston rod thread type: Piston rod: internal thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 15 mm
  • Dimension: 3.15x3.15x3.15 (inches)
View other configurations.
AVENTICS Short-stroke cylinder, Series SSI R480637984
