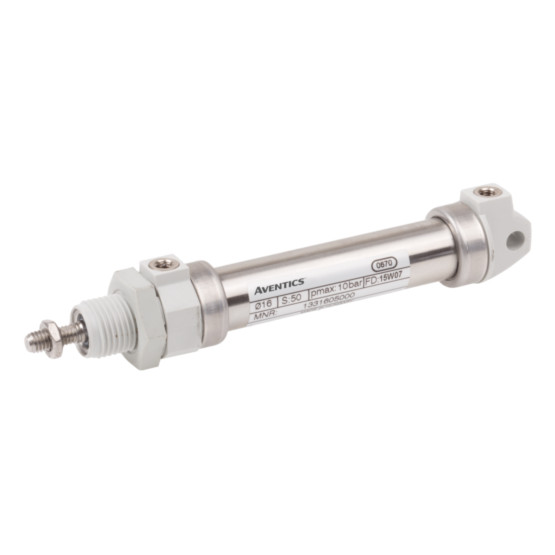

Aventics ICM-DA-020-0040-M Pneumatic Linear Actuator

ISO 6432, Standard cylinders, ISO cylinder, Mini cylinder, Piston rod cylinders, suitable for use in food processing. View other configurations.

Aventics ICM-DA-020-0040-M Pneumatic Linear Actuator — Aventics-ICM-DA-020-0040-M

$193.22

Part Numbers

ICM-DA-020-0040-M
R404051010

Highlights...

ICM-DA-020-0040-M
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 11 weeks

Features

Bore Size: 20 mm
Compressed air connection: G 1/8
Cushioning: Elastic cushioning
Cylinder Function: Double-acting
Environmental requirements: Industry standard, suitable for use in food processing
Industry: Industrial
Magnetic piston: Piston with magnet
Max Working Pressure: 10 bar
Piston force extending: 198 N
Piston force retracting: 166 N
Piston rod modification: single
Piston rod thread: M8
Piston rod thread type: External thread
Scraper Type: Standard Industry Scraper
Stroke Length: 40 mm
Dimension: 6.69x1.57x1.57 (inches)

View other configurations.

AVENTICS Mini cylinder, Series ICM R404051010
