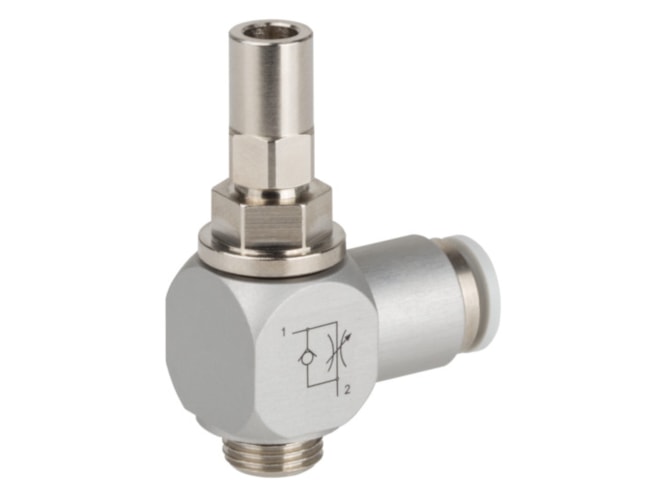

Aventics CC02-AL-G018-DA04-2_1_K_LN Flow Control Valve

Exhaust Air Throttling, Check-choke valve, Inlet-Side Throttling. View other configurations.

$30.57
Part Numbers
  • CC02-AL-G018-DA04-2_1_K_LN
  • 0821200241
Highlights...

Features

  • Compressed air connection: Ø 4
  • Compressed air connection 2: G 1/8
  • Compressed air connection type: push-in fitting
  • Compressed air connection type 2: External thread
  • Housing Material: Aluminum, anodized
  • Industry: Industrial
  • Qn 2 to 1: 360 l/min
  • Sealing Material: Acrylonitrile butadiene rubber
  • Throttle direction: 2 to 1
  • Dimension: 1.97x2.95x0.59 (inches)
View other configurations.
AVENTICS Check-choke valve, Series CC02-AL 0821200241
