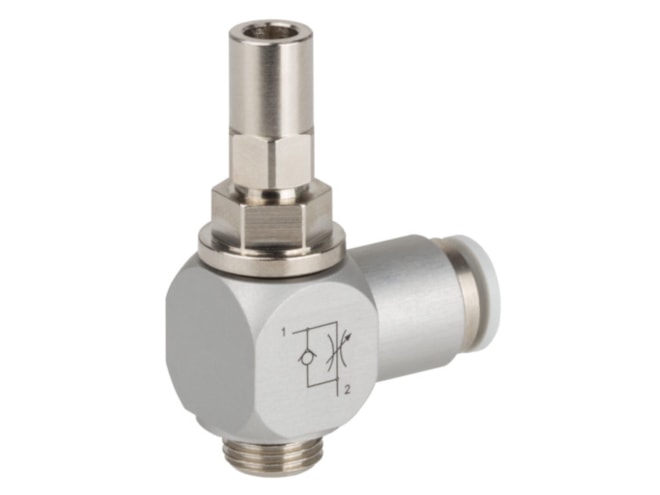

Aventics CC02-AL-G018-DA06-2_1_K_LN Flow Control Valve

Check-choke valve, Exhaust Air Throttling, Inlet-Side Throttling. View other configurations.

$37.37
Part Numbers
  • CC02-AL-G018-DA06-2_1_K_LN
  • 0821200243
Highlights...

Features

  • Compressed air connection: Ø 6
  • Compressed air connection 2: G 1/8
  • Compressed air connection type: push-in fitting
  • Compressed air connection type 2: External thread
  • Housing Material: Aluminum, anodized
  • Industry: Industrial
  • Qn 2 to 1: 360 l/min
  • Sealing Material: Acrylonitrile butadiene rubber
  • Throttle direction: 2 to 1
  • Dimension: 1.77x1.18x0.59 (inches)
View other configurations.
AVENTICS Check-choke valve, Series CC02-AL 0821200243
