Aventics CC02-AL-G018-DA06-2_1_K_LN_HNBR Flow Control Valve

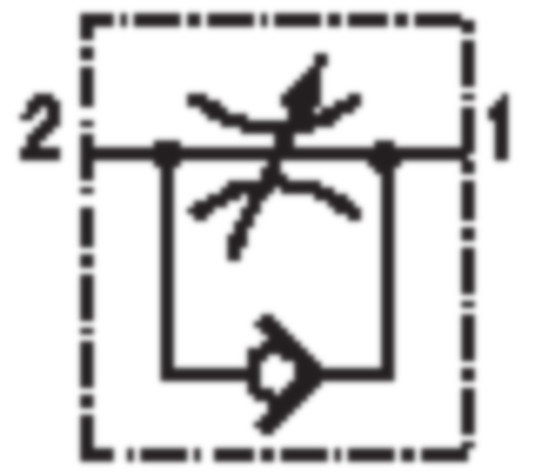

Check-choke valve, Exhaust Air Throttling, Inlet-Side Throttling. View other configurations.

$42.46
Part Numbers
  • CC02-AL-G018-DA06-2_1_K_LN_HNBR
  • R412026733
Highlights...

Features

  • Compressed air connection: Ø 6
  • Compressed air connection 2: G 1/8
  • Compressed air connection type: push-in fitting
  • Compressed air connection type 2: External thread
  • Housing Material: Aluminum, anodized
  • Industry: Industrial
  • Qn 2 to 1: 284 l/min
  • Sealing Material: Hydrogenated nitrile butadiene rubber
  • Throttle direction: 2 to 1
  • Dimension: 1.18x1.57x0.59 (inches)
View other configurations.
AVENTICS Check-choke valve, Series CC02-AL-HNBR R412026733
