Aventics VVST-5/2DS-024DC Electric and Pneumatic Actuated Directional Valve

Pipe connection, Single valve, Spool valve. View other configurations.

Aventics VVST-5/2DS-024DC Electric and Pneumatic Actuated Directional Valve — Aventics-VVST-5/2DS-024DC

$394.84

Part Numbers

VVST-5/2DS-024DC
0820030151

Highlights...

VVST-5/2DS-024DC
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Activation: Electrically
Compressed air connection output: G 1/8
Electrical Connection 2: ISO 15217, form C
Flow L M: 280 l/min
Housing Material: Stainless Steel
Industry: Industrial
Manual Override: without detent
Max Working Pressure: 10 bar
Min Working Pressure: 2 bar
Operating Voltage: 24 V DC
Seat Seal Type: metal/metal sealing

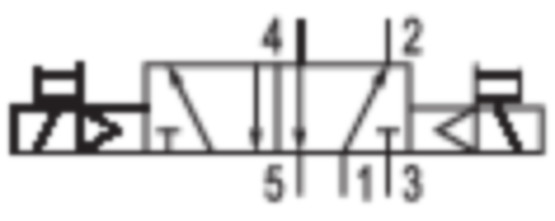

Switching principle: 5/2, double solenoid
Valve Pilot: Internal
Voltage tolerance: -10% / +10%
Wattage: 2 W

View other configurations.

AVENTICS 5/2-directional valve, Series ST 0820030151
