Aventics DISTRIBUTEUR ELECT ISO1 DVV3 5/2 Electric and Pneumatic Actuated Directional Valve

Name: Aventics DISTRIBUTEUR ELECT ISO1 DVV3 5/2 Electric and Pneumatic Actuated Directional Valve
Price: 195.3 USD
Availability: BackOrder

View other configurations.

$195.30

Part Numbers

DISTRIBUTEUR ELECT ISO1 DVV3 5/2
0820024250

Highlights...

DISTRIBUTEUR ELECT ISO1 DVV3 5/2
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 2-3 weeks

Features

Activation: Electrically
DC operating voltage: 24 V
Electrical Connection 2: M12
Electrical Connection Type 2: Plug
Flow L M: 1060 l/min
Industry: Industrial
Manual Override: without detent
Max Operating Pressure Range: 10 bar
Max Working Pressure: 10 bar
Operating Voltage: 24 V DC
Protection class: IP65
Seat Seal Type: Soft seal
Standards and Regulations: ISO 5599-1
Valve Pilot: Internal

View other configurations.

AVENTICS 5/2-directional valve, Series IS12, size 1 0820024250

Spec Sheets

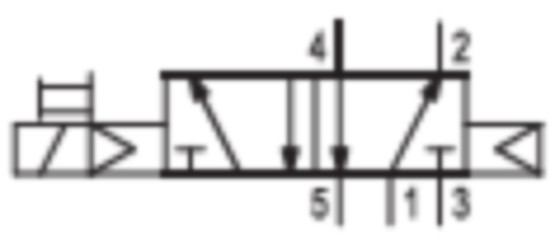

Aventics DISTRIBUTEUR ELECT ISO1 DVV3 5/2 Electric and Pneumatic Actuated Directional Valve Schemat (13 KB)
