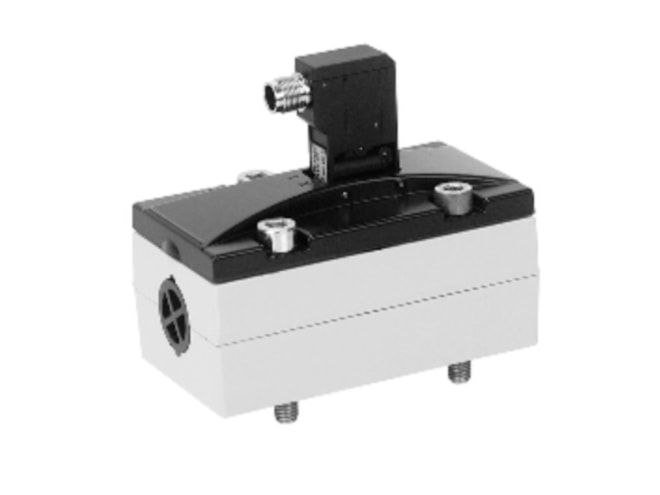

Aventics V581-5/3CC-024DC-I3-2M12-LUX-AA-X-C-T0 Electric and Pneumatic Actuated Directional Valve

View other configurations.

Call for pricing
Part Numbers
  • V581-5/3CC-024DC-I3-2M12-LUX-AA-X-C-T0
  • 5813420720
Highlights...

Features

  • Activation: Electrically
  • DC operating voltage: 24 V
  • Electrical Connection 2: M12
  • Electrical Connection Type 2: Plug
  • Flow L M: 4100 l/min
  • Industry: Industrial
  • Manual Override: without detent
  • Max Operating Pressure Range: 10 bar
  • Max Working Pressure: 10 bar
  • Operating Voltage: 24 V DC
  • Protection class: IP65
  • Seat Seal Type: Soft seal
  • Standards and Regulations: ISO 5599-1
  • Switching principle: 5/3, closed center
  • Valve Pilot: Internal
  • Dimension: 5.31x4.72x3.15 (inches)
View other configurations.
AVENTICS 5/3-directional valve, Series 581, size 3 5813420720
