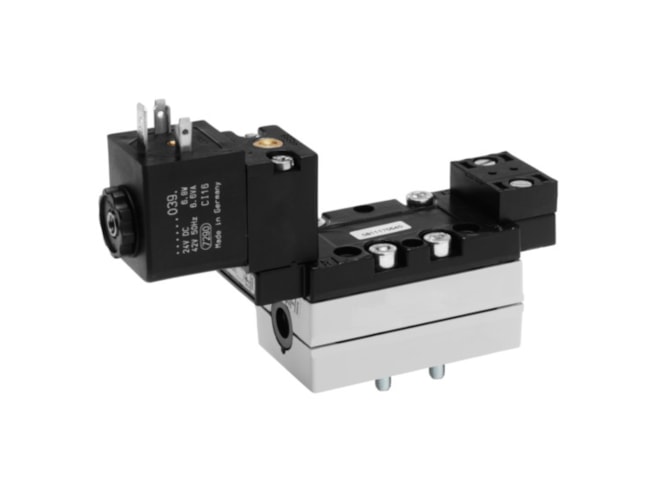

Aventics V581-5/2SR-24/42-I1-1CNO-HUX-AA-X-C-T1 Electric and Pneumatic Actuated Directional Valve

Name: Aventics V581-5/2SR-24/42-I1-1CNO-HUX-AA-X-C-T1 Electric and Pneumatic Actuated Directional Valve
Price: 179.5 USD
Availability: BackOrder

View other configurations.

$179.50

Part Numbers

V581-5/2SR-24/42-I1-1CNO-HUX-AA-X-C-T1
5811171540

Highlights...

V581-5/2SR-24/42-I1-1CNO-HUX-AA-X-C-T1
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Activation: Electrically
DC operating voltage: 24 V
Electrical Connection 2: EN 175301-803, form A
Electrical Connection Type 2: Plug
Flow L M: 1400 l/min
Industry: Industrial
Manual Override: without detent
Max Operating Pressure Range: 16 bar
Max Working Pressure: 16 bar
Operating Voltage: 24 V DC / 42 V AC
Operational voltage AC at 50 Hz: 42 V
Protection class: IP65
Seat Seal Type: Soft seal
Standards and Regulations: ISO 5599-1

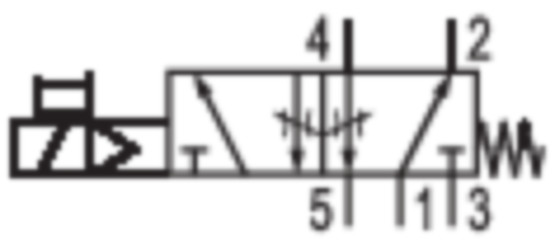

Switching principle: 5/2, with spring return
Valve Pilot: Internal
Dimension: 3.90x3.90x3.90 (inches)

View other configurations.

AVENTICS 5/2-directional valve, Series 581, size 1 5811171540
