Aventics V581-5/2DS-048DC-I1-2P22-HBX-PA-X-S-T0 Electric and Pneumatic Actuated Directional Valve

View other configurations.

Aventics V581-5/2DS-048DC-I1-2P22-HBX-PA-X-S-T0 Electric and Pneumatic Actuated Directional Valve — Aventics-V581-5/2DS-048DC-I1-2P22-HBX-PA-X-S-T0

Call for pricing

Part Numbers

V581-5/2DS-048DC-I1-2P22-HBX-PA-X-S-T0
5811222600

Highlights...

V581-5/2DS-048DC-I1-2P22-HBX-PA-X-S-T0
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Activation: Electrically
DC operating voltage: 48 V
Electrical Connection 2: Form B, industry
Electrical Connection Type 2: Plug
Flow L M: 1400 l/min
Industry: Industrial
Manual Override: with detent
Max Operating Pressure Range: 10 bar
Max Working Pressure: 10 bar
Operating Voltage: 48 V DC
Protection class: IP65
Seat Seal Type: Soft seal
Standards and Regulations: ISO 5599-1

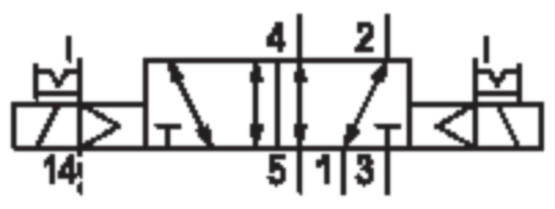

Switching principle: 5/2, double solenoid
Valve Pilot: External
Dimension: 3.90x3.90x3.90 (inches)

View other configurations.

AVENTICS 5/2-directional valve, Series 581, size 1 5811222600
