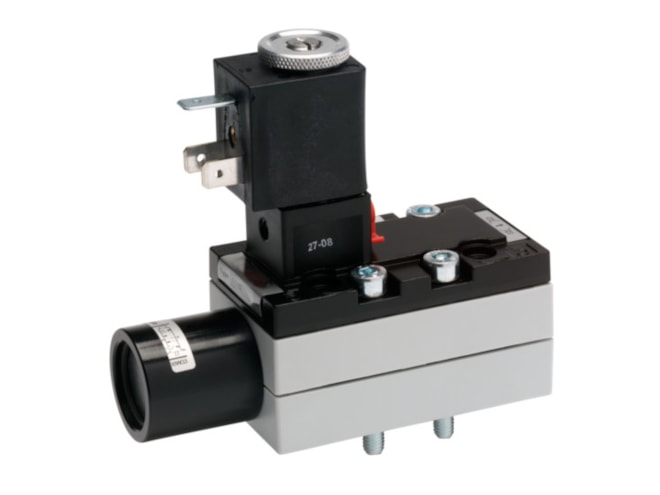

Aventics V581-5/2AR-024AC-I1-AP22-HBX-PA-D-C-T1 Electric and Pneumatic Actuated Directional Valve

View other configurations.

Aventics V581-5/2AR-024AC-I1-AP22-HBX-PA-D-C-T1 Electric and Pneumatic Actuated Directional Valve — Aventics-V581-5/2AR-024AC-I1-AP22-HBX-PA-D-C-T1

Call for pricing

Part Numbers

V581-5/2AR-024AC-I1-AP22-HBX-PA-D-C-T1
5811611200

Highlights...

V581-5/2AR-024AC-I1-AP22-HBX-PA-D-C-T1
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Activation: Electrically
Electrical Connection 2: Form B, industry
Electrical Connection Type 2: Plug
Flow L M: 1400 l/min
Industry: Industrial
Manual Override: with detent
Max Operating Pressure Range: 10 bar
Max Working Pressure: 10 bar
Operating Voltage: 24 V AC
Operational voltage AC at 50 Hz: 24 V
Protection class: IP65
Seat Seal Type: Soft seal
Standards and Regulations: ISO 5599-1
Switching principle: 5/2, with air spring return
Valve Pilot: Internal
Dimension: 3.90x3.90x3.90 (inches)

View other configurations.

AVENTICS 5/2-directional valve, Series 581, size 1 5811611200
