Aventics DO30-3/2NC-CNOM-024AC Electric and Pneumatic Actuated Directional Valve

Poppet valve, Single valve. View other configurations.

Aventics DO30-3/2NC-CNOM-024AC Electric and Pneumatic Actuated Directional Valve — Aventics-DO30-3/2NC-CNOM-024AC

$80.99

Part Numbers

DO30-3/2NC-CNOM-024AC
0820019527

Highlights...

DO30-3/2NC-CNOM-024AC
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 5 weeks

Features

Activation: Electrically
Compatibility index: 15
Compressed air connection: CNOMO
Compressed air connection output: CNOMO
Electrical Connection 2: EN 175301-803, form A
Flow L M: 68 l/min
Housing Material: Plastic
Industry: Industrial
Manual Override: without detent
Max Working Pressure: 10 bar
Min Working Pressure: 0 bar
Operating Voltage: 24 V AC
Scale size: DO30
Seat Seal Type: Soft seal

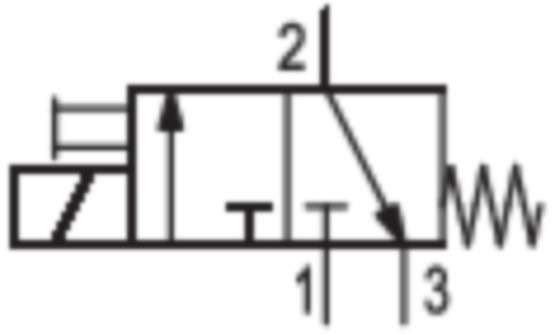

Switching principle: 3/2, with spring return
Valve Function: NC
Dimension: 3.90x3.90x3.90 (inches)

View other configurations.

AVENTICS 3/2-directional valve, Series DO30 0820019527
