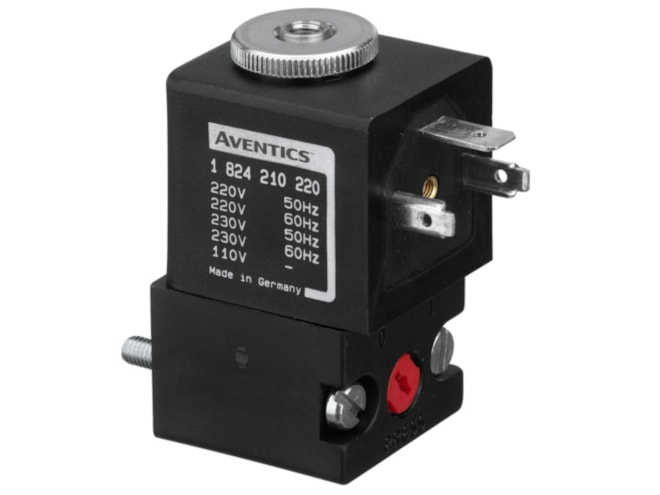

Aventics DO30-3/2NC-CNOM Electric and Pneumatic Actuated Directional Valve

Single valve, Poppet valve. View other configurations.

Aventics DO30-3/2NC-CNOM Electric and Pneumatic Actuated Directional Valve — Aventics-DO30-3/2NC-CNOM

$64.64

Part Numbers

DO30-3/2NC-CNOM
0820019985

Highlights...

DO30-3/2NC-CNOM
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Activation: Electrically
Compatibility index: 15
Compressed air connection: CNOMO
Compressed air connection output: CNOMO
Electrical Connection 2: EN 175301-803, form A
Flow L M: 68 l/min
Housing Material: Plastic
Industry: Industrial
Manual Override: without detent
Max Working Pressure: 10 bar
Min Working Pressure: 0 bar
Scale size: DO30
Seat Seal Type: Soft seal
Switching principle: 3/2, with spring return
Valve Configuration: Basic valve without coil
Valve Function: NC
Dimension: 2.68x1.57x1.38 (inches)

View other configurations.

AVENTICS 3/2-directional valve, Series DO30 0820019985
