Aventics DO22-3/2NC-SPEZ-024AC Electric and Pneumatic Actuated Directional Valve

Poppet valve, Single valve. View other configurations.

Aventics DO22-3/2NC-SPEZ-024AC Electric and Pneumatic Actuated Directional Valve — Aventics-DO22-3/2NC-SPEZ-024AC

Call for pricing

Part Numbers

DO22-3/2NC-SPEZ-024AC
0820019642

Highlights...

DO22-3/2NC-SPEZ-024AC
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 11 weeks

Features

Activation: Electrically
Compatibility index: 14
Compressed air connection: Base plate
Compressed air connection output: M5
Electrical Connection 2: ISO 6952, form B
Flow L M: 61 l/min
Housing Material: Plastic
Industry: Industrial
Manual Override: with detent
Max Working Pressure: 10 bar
Min Working Pressure: 0 bar
Operating Voltage: 24 V AC
Scale size: DO22
Seat Seal Type: Soft seal

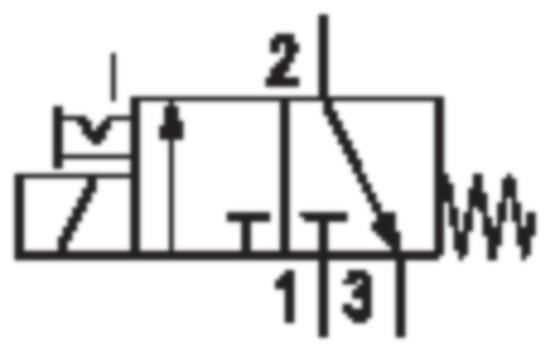

Switching principle: 3/2, with spring return
Valve Function: NC
Dimension: 1.97x1.18x1.77 (inches)

View other configurations.

AVENTICS 3/2-directional valve, Series DO22 0820019642

Spec Sheets
