Aventics DO35-3/2NO-G018-110AC Electric and Pneumatic Actuated Directional Valve

Single valve, Poppet valve. View other configurations.

Aventics DO35-3/2NO-G018-110AC Electric and Pneumatic Actuated Directional Valve — Aventics-DO35-3/2NO-G018-110AC

$107.97

Part Numbers

DO35-3/2NO-G018-110AC
0820005202

Highlights...

DO35-3/2NO-G018-110AC
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 3-4 weeks

Features

Activation: Electrically
Compressed air connection: G 1/8
Compressed air connection output: G 1/8
Electrical Connection 2: EN 175301-803, form A
Flow L M: 110 l/min
Housing Material: Die cast zinc
Industry: Industrial
Manual Override: with detent
Max Working Pressure: 10 bar
Min Working Pressure: 0 bar
Operating Voltage: 110 V AC
Scale size: DO35
Seat Seal Type: Soft seal

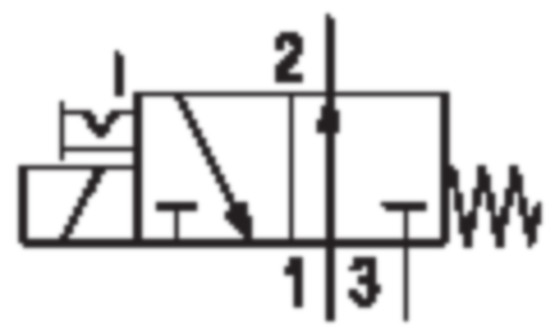

Switching principle: 3/2, with spring return
Valve Function: NO

View other configurations.

AVENTICS 3/2-directional valve, Series DO35 0820005202

Spec Sheets
