Aventics ES05-2X3/2CC-D3/8-24VDC-SGL Electric and Pneumatic Actuated Directional Valve

Single valve, imperial, inch. View other configurations.

Aventics ES05-2X3/2CC-D3/8-24VDC-SGL Electric and Pneumatic Actuated Directional Valve — Aventics-ES05-2X3/2CC-D3/8-24VDC-SGL

$165.82

Part Numbers

ES05-2X3/2CC-D3/8-24VDC-SGL
R422103181

Highlights...

ES05-2X3/2CC-D3/8-24VDC-SGL
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Activation: Electrically
Certifications: UR (Underwriters Laboratories)
Compressed air connection output: Ø 3/8
Electrical Connection 2: form C, industry
Flow L M: 500 l/min
Housing Material: Polyamide fiber-glass reinforced
Industry: Industrial
Manual Override: without detent
Max Working Pressure: 8 bar
Min Working Pressure: 3 bar
Operating Voltage: 24 V DC

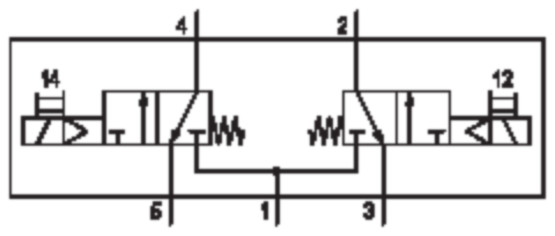

Switching principle: 2x 3/2 NC/NC, with spring return
Valve Function: NC/NC
Voltage tolerance: -15% / +10%
Wattage: 2 W
Dimension: 5.31x3.54x0.79 (inches)

View other configurations.

AVENTICS 2x3/2-directional valve, Series ES05 -inch R422103181
