Aventics ES05-5/3CC-D8-24VDC-SGL-M8 Electric and Pneumatic Actuated Directional Valve

Single valve. View other configurations.

Aventics ES05-5/3CC-D8-24VDC-SGL-M8 Electric and Pneumatic Actuated Directional Valve — Aventics-ES05-5/3CC-D8-24VDC-SGL-M8

$189.23

Part Numbers

ES05-5/3CC-D8-24VDC-SGL-M8
R422103863

Highlights...

ES05-5/3CC-D8-24VDC-SGL-M8
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Activation: Electrically
Compressed air connection output: Ø 8
Electrical Connection 2: M8x1
Flow L M: 500 l/min
Housing Material: Polyamide fiber-glass reinforced
Industry: Industrial
Manual Override: without detent
Max Working Pressure: 8 bar
Min Working Pressure: 3 bar
Operating Voltage: 24 V DC

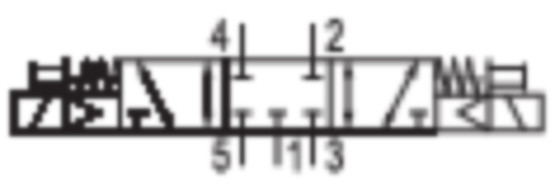

Switching principle: 5/3, closed center
Valve Function: Closed Center
Voltage tolerance: -15% / +10%
Wattage: 2 W
Dimension: 5.12x3.15x0.79 (inches)

View other configurations.

AVENTICS 5/3-directional valve, Series ES05 R422103863
