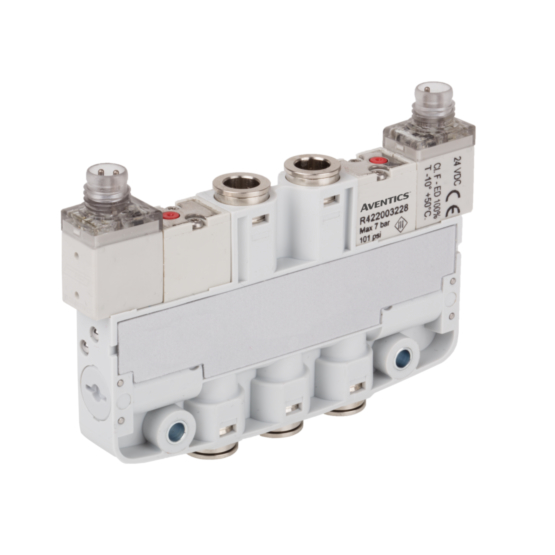

Aventics LS04-3/2CC-024DC-AF-I-M8-D4-NEW Electric and Pneumatic Actuated Directional Valve

Name: Aventics LS04-3/2CC-024DC-AF-I-M8-D4-NEW Electric and Pneumatic Actuated Directional Valve
Price: 172.15 USD
Availability: BackOrder

Pipe connection, Spool valve, Single valve. View other configurations.

$172.15

Part Numbers

LS04-3/2CC-024DC-AF-I-M8-D4-NEW
R422103581

Highlights...

LS04-3/2CC-024DC-AF-I-M8-D4-NEW
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Activation: Electrically
Compressed air connection output: Ø 4
Electrical Connection 2: M8
Flow L M: 180 l/min
Housing Material: Polyoxymethylene
Industry: Industrial
Manual Override: without detent
Max Working Pressure: 7 bar
Min Working Pressure: 3.5 bar
Operating Voltage: 24 V DC
Seat Seal Type: Soft seal

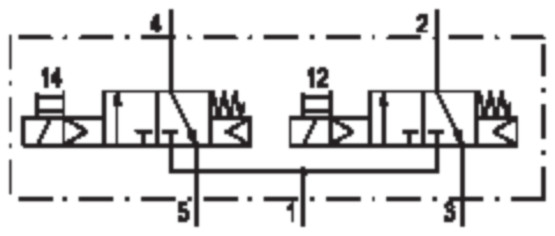

Switching principle: 2x 3/2 NC/NC, with spring return
Valve Function: NC/NC
Valve Pilot: Internal
Voltage tolerance: -10% / +10%
Wattage: 1.3 W
Dimension: 2.95x2.05x0.39 (inches)

View other configurations.

AVENTICS 3/2 directional valve, LS04-AF series R422103581

Spec Sheets
