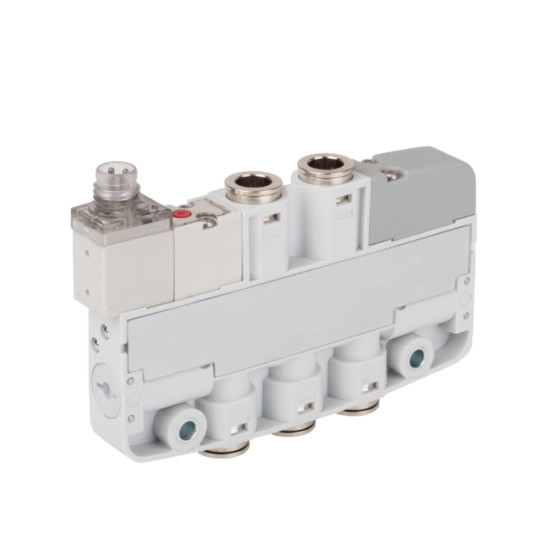

Aventics LS04-5/2DS-024DC-AF-I-M8-D4-NEW Electric and Pneumatic Actuated Directional Valve

Name: Aventics LS04-5/2DS-024DC-AF-I-M8-D4-NEW Electric and Pneumatic Actuated Directional Valve
Price: 154.61 USD
Availability: BackOrder

Spool valve, Pipe connection, Single valve. View other configurations.

$154.61

Part Numbers

LS04-5/2DS-024DC-AF-I-M8-D4-NEW
R422103569

Highlights...

LS04-5/2DS-024DC-AF-I-M8-D4-NEW
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Activation: Electrically
Compressed air connection output: Ø 4
Electrical Connection 2: M8
Flow L M: 180 l/min
Housing Material: Polyoxymethylene
Industry: Industrial
Manual Override: without detent
Max Working Pressure: 7 bar
Min Working Pressure: 2 bar
Operating Voltage: 24 V DC
Seat Seal Type: Soft seal

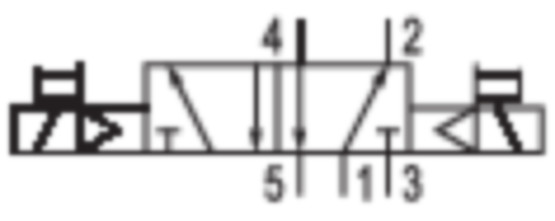

Switching principle: 5/2, with spring return
Valve Pilot: Internal
Voltage tolerance: -10% / +10%
Wattage: 1.3 W
Dimension: 3.15x2.09x0.39 (inches)

View other configurations.

AVENTICS 5/2-directional valve, Series LS04-AF R422103569

Spec Sheets
