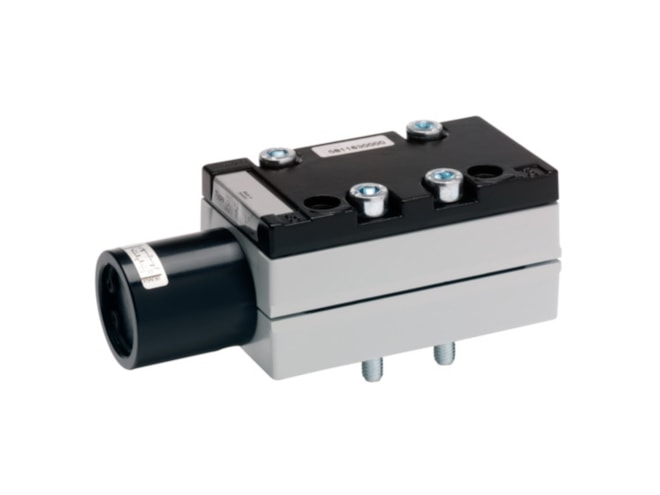

Aventics V581-5/2DP-I1-AIR-AA-D-T0 Electric and Pneumatic Actuated Directional Valve | Electric and Pneumatic Actuated Directional Valves | Motion World

Aventics V581-5/2DP-I1-AIR-AA-D-T0 Electric and Pneumatic Actuated Directional Valve — Aventics-V581-5/2DP-I1-AIR-AA-D-T0

$169.35

Part Numbers

V581-5/2DP-I1-AIR-AA-D-T0
5811630000

Highlights...

V581-5/2DP-I1-AIR-AA-D-T0
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Activation: Pneumatically
Compressed air connection output: Base plate ISO 5599-1
Flow L M: 1400 l/min
Industry: Industrial
Max Operating Pressure Range: 16 bar
Max Working Pressure: 16 bar
Seat Seal Type: Soft seal
Standards and Regulations: ISO 5599-1

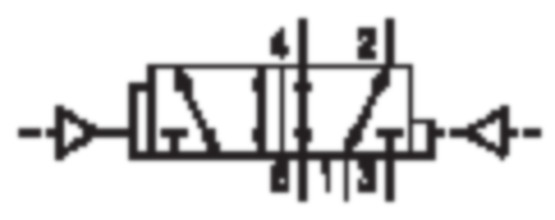

Switching principle: 5/2, with spring return
Dimension: 5x4.29x1.97 (inches)

View other configurations.

AVENTICS 5/2-directional valve, Series 581, size 1 5811630000
