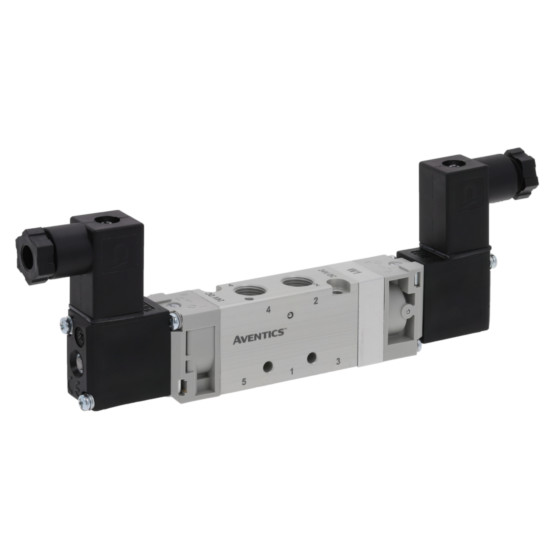

Aventics 52000129 Electric and Pneumatic Actuated Directional Valve

5/2, 5/3 spool valves, Single valve. View other configurations.

Aventics 52000129 Electric and Pneumatic Actuated Directional Valve — Aventics-52000129

Call for pricing

Part Numbers

52000129
52000129

Highlights...

52000129
By Aventics
FREE Shipping on orders of $1,000 or more
Call for availability

Features

Activation: Electrically
Compressed air connection output: G 1/8
Electrical Connection 2: EN 175301-803, form C
Flow L M: 600 l/min
Housing Material: Aluminum, anodized
Industry: Industrial
Manual Override: without detent
Max Working Pressure: 8 bar
Min Working Pressure: 1.5 bar
Operating Voltage: 24 V DC
Seat Seal Type: Soft seal
Switching principle: 5/3, pressurized center
Valve Function: Pressurized Center
Valve Pilot: Internal
Wattage: 1.6 W

View other configurations.

AVENTICS 5/3-directional valve, Series 520 52000129

Spec Sheets
