Aventics V581-5/2AR-024DC-I1-AM12-LUX-PA-D-C-T0 Electric and Pneumatic Actuated Directional Valve

Name: Aventics V581-5/2AR-024DC-I1-AM12-LUX-PA-D-C-T0 Electric and Pneumatic Actuated Directional Valve
Price: 171.18 USD
Availability: BackOrder

View other configurations.

$171.18

Part Numbers

V581-5/2AR-024DC-I1-AM12-LUX-PA-D-C-T0
5811610720

Highlights...

V581-5/2AR-024DC-I1-AM12-LUX-PA-D-C-T0
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Activation: Electrically
DC operating voltage: 24 V
Electrical Connection 2: M12
Electrical Connection Type 2: Plug
Flow L M: 1400 l/min
Industry: Industrial
Manual Override: without detent
Max Operating Pressure Range: 10 bar
Max Working Pressure: 10 bar
Operating Voltage: 24 V DC
Protection class: IP65
Seat Seal Type: Soft seal
Standards and Regulations: ISO 5599-1

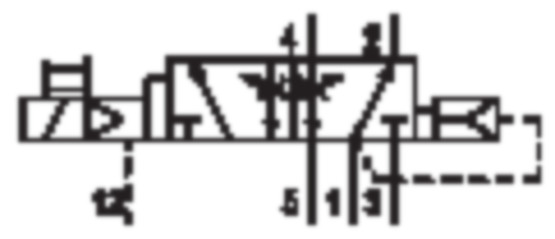

Switching principle: 5/2, with air spring return
Valve Pilot: Internal
Dimension: 1.97x1.97x1.97 (inches)

View other configurations.

AVENTICS 5/2-directional valve, Series 581, size 1 5811610720
