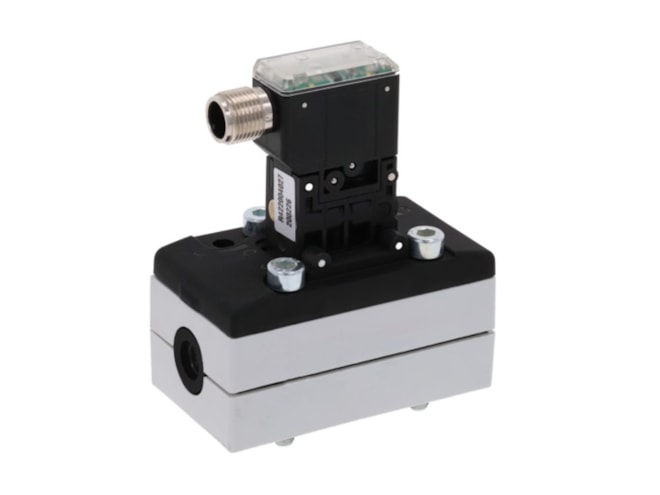

Aventics V581-5/3PC-024DC-I1-2M12-LBX-PA-X-S-T0 Electric and Pneumatic Actuated Directional Valve

Name: Aventics V581-5/3PC-024DC-I1-2M12-LBX-PA-X-S-T0 Electric and Pneumatic Actuated Directional Valve
Price: 301.89 USD
Availability: BackOrder

View other configurations.

$301.89

Part Numbers

V581-5/3PC-024DC-I1-2M12-LBX-PA-X-S-T0
5811722710

Highlights...

V581-5/3PC-024DC-I1-2M12-LBX-PA-X-S-T0
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Activation: Electrically
DC operating voltage: 24 V
Electrical Connection 2: M12
Electrical Connection Type 2: Plug
Flow L M: 1100 l/min
Industry: Industrial
Manual Override: with detent
Max Operating Pressure Range: 10 bar
Max Working Pressure: 10 bar
Operating Voltage: 24 V DC
Protection class: IP65
Seat Seal Type: Soft seal
Standards and Regulations: ISO 5599-1

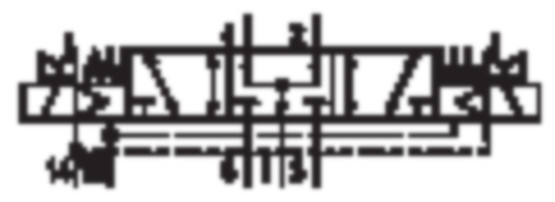

Switching principle: 5/3, pressurized center
Valve Pilot: External

View other configurations.

AVENTICS 5/3-directional valve, Series 581, size 1 5811722710
