Aventics V581-5/2DS-024DC-I2-2M12-LBX-PA-X-C-T1 Electric and Pneumatic Actuated Directional Valve

Name: Aventics V581-5/2DS-024DC-I2-2M12-LBX-PA-X-C-T1 Electric and Pneumatic Actuated Directional Valve
Availability: BackOrder

View other configurations.

Call for pricing

Effective March 12th, Aventics has added a 7.5% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.

Part Numbers

V581-5/2DS-024DC-I2-2M12-LBX-PA-X-C-T1
5812221710

Highlights...

V581-5/2DS-024DC-I2-2M12-LBX-PA-X-C-T1
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Activation: Electrically
DC operating voltage: 24 V
Electrical Connection 2: M12
Electrical Connection Type 2: Plug
Flow L M: 2700 l/min
Industry: Industrial
Manual Override: with detent
Max Operating Pressure Range: 10 bar
Max Working Pressure: 10 bar
Operating Voltage: 24 V DC
Protection class: IP65
Seat Seal Type: Soft seal
Standards and Regulations: ISO 5599-1

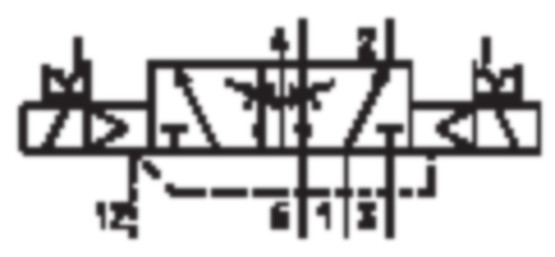

Switching principle: 5/2, double solenoid
Valve Pilot: Internal

View other configurations.

AVENTICS 5/2-directional valve, Series 581, size 2 5812221710
