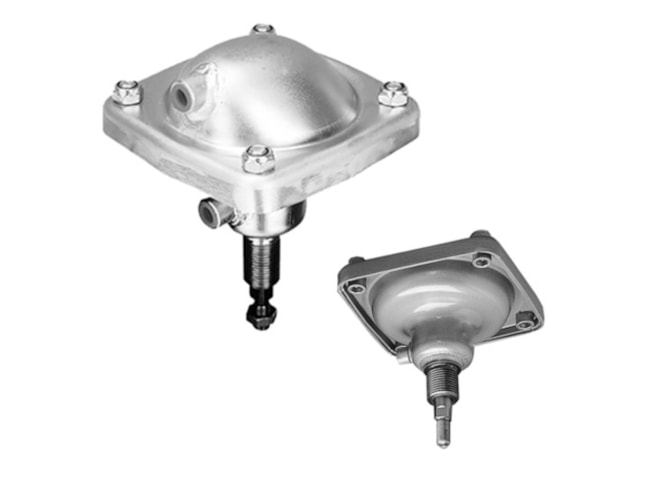

Aventics 80Q, 40H SA M12X1,25 Pneumatic Linear Actuator

Piston rod cylinders, Diaphragm-type cylinder. View other configurations.

Call for pricing
Part Numbers
  • 80Q, 40H SA M12X1,25
  • 1020100000
Highlights...

Features

  • Bore Size: 80 mm
  • Compressed air connection: G 1/4
  • Cylinder Function: Single-acting, retracted without pressure
  • Force max.: 300 N
  • Force min.: 100 N
  • Industry: Industrial
  • Max Working Pressure: 8 bar
  • Piston force extending: 3000 N
  • Piston rod thread: M12x1,25
  • Piston rod thread type: External thread
  • Stroke Length: 40 mm
  • Dimension: 8.66x6.30x6.30 (inches)
View other configurations.
AVENTICS Diaphragm-type cylinder, Series 102 1020100000
