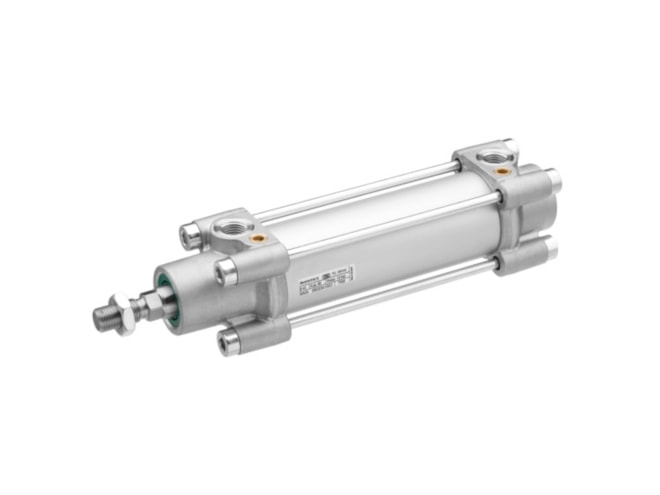

Aventics TRB-DA-050-0400-0122811100000000000000-B Pneumatic Linear Actuator

ISO cylinder, ISO 15552, Low friction, Piston rod cylinders, Tie rod cylinder. View other configurations.

Aventics TRB-DA-050-0400-0122811100000000000000-B Pneumatic Linear Actuator — Aventics-TRB-DA-050-0400-0122811100000000000000-B

$396.64

Part Numbers

TRB-DA-050-0400-0122811100000000000000-B
R481602044

Highlights...

TRB-DA-050-0400-0122811100000000000000-B
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Bore Size: 50 mm
Compressed air connection: G 1/4
Cushioning: Pneumatic adjustable cushioning
Cylinder Function: Double-acting
Environmental requirements: Industry standard
Industry: Industrial
Magnetic piston: Piston with magnet
Max Working Pressure: 10 bar
Piston force extending: 1235 N
Piston force retracting: 1035 N
Piston rod modification: non-rotating
Piston rod thread: M16x1,5
Piston rod thread type: External thread
Scraper Type: Standard Industry Scraper
Stroke Length: 400 mm

View other configurations.

AVENTICS Tie rod cylinder ISO 15552, Series TRB R481602044

Spec Sheets
