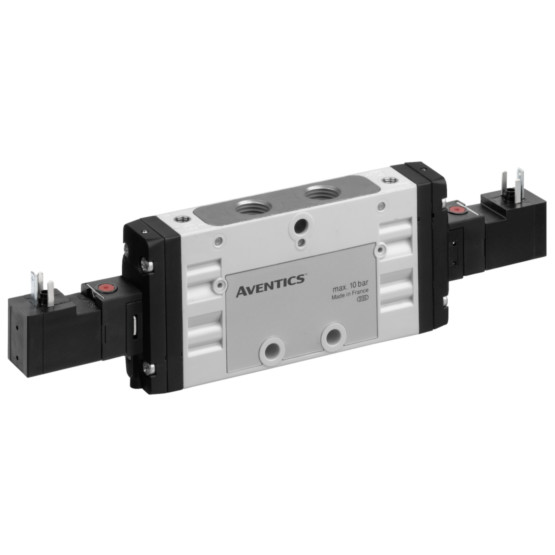

Aventics TC15-3/2OO-SR-024DC-E-FORM_C-SGL Electric and Pneumatic Actuated Directional Valve

Pipe connection, Spool valve, Single valve. View other configurations.

Aventics TC15-3/2OO-SR-024DC-E-FORM_C-SGL Electric and Pneumatic Actuated Directional Valve — Aventics-TC15-3/2OO-SR-024DC-E-FORM_C-SGL

Call for pricing

Part Numbers

TC15-3/2OO-SR-024DC-E-FORM_C-SGL
R422102172

Highlights...

TC15-3/2OO-SR-024DC-E-FORM_C-SGL
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Activation: Electrically
Compressed air connection output: G 1/4
Electrical Connection 2: ISO 15217, form C
Flow L M: 1100 l/min
Housing Material: Polyamide fiber-glass reinforced
Industry: Industrial
Manual Override: without detent
Max Working Pressure: 10 bar
Min Working Pressure: -0.9 bar
Operating Voltage: 24 V DC
Seat Seal Type: Soft seal
Valve Function: NO/NO
Valve Pilot: External, Internal
Voltage tolerance: -10% / +10%
Wattage: 2 W

View other configurations.

AVENTICS 2x3/2-directional valve, Series TC15 R422102172
