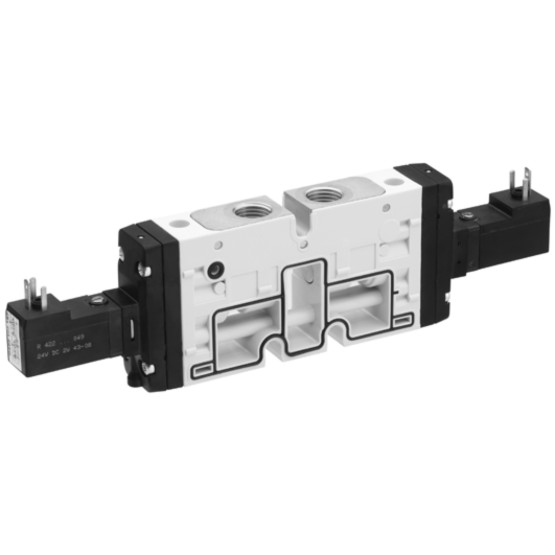

Aventics TC15-3/2CO-SR-024DC-E-FORM_C-VTS Electric and Pneumatic Actuated Directional Valve

Name: Aventics TC15-3/2CO-SR-024DC-E-FORM_C-VTS Electric and Pneumatic Actuated Directional Valve
Price: 139.18 USD
Availability: BackOrder

Single valve, Pipe connection, Spool valve. View other configurations.

$139.18

Part Numbers

TC15-3/2CO-SR-024DC-E-FORM_C-VTS
R422102205

Highlights...

TC15-3/2CO-SR-024DC-E-FORM_C-VTS
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Activation: Electrically
Compressed air connection output: G 1/4
Electrical Connection 2: ISO 15217, form C
Flow L M: 1100 l/min
Housing Material: Polyamide fiber-glass reinforced
Industry: Industrial
Manual Override: with detent
Max Working Pressure: 10 bar
Min Working Pressure: -0.9 bar
Operating Voltage: 24 V DC
Seat Seal Type: Soft seal
Valve Function: NC/NO
Valve Pilot: External
Voltage tolerance: -10% / +10%
Wattage: 2 W

View other configurations.

AVENTICS Valves, Series TC15 R422102205

Spec Sheets
