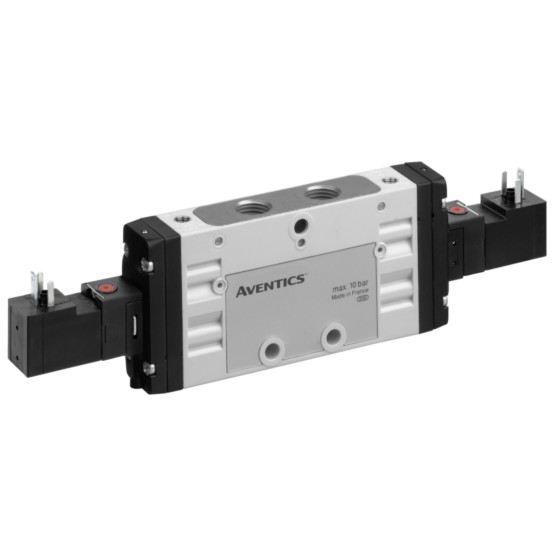

Aventics TC15-5/2XX-DO-024DC-I-FORM_C-SGL Electric and Pneumatic Actuated Directional Valve

Name: Aventics TC15-5/2XX-DO-024DC-I-FORM_C-SGL Electric and Pneumatic Actuated Directional Valve
Price: 120.63 USD
Availability: BackOrder

Spool valve, Pipe connection, Single valve. View other configurations.

$120.63

Part Numbers

TC15-5/2XX-DO-024DC-I-FORM_C-SGL
0820058601

Highlights...

TC15-5/2XX-DO-024DC-I-FORM_C-SGL
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Activation: Electrically
Compressed air connection output: G 1/4
Electrical Connection 2: ISO 15217, form C
Flow L M: 1500 l/min
Housing Material: Polyamide fiber-glass reinforced
Industry: Industrial
Manual Override: without detent
Max Working Pressure: 10 bar
Min Working Pressure: 2 bar
Operating Voltage: 24 V DC
Seat Seal Type: Soft seal
Valve Pilot: Internal
Voltage tolerance: -10% / +10%
Wattage: 2 W
Dimension: 8.27x1.77x0.98 (inches)

View other configurations.

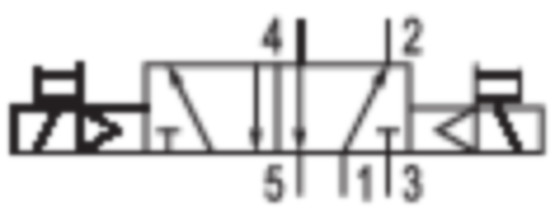

AVENTICS 5/2-directional valve, Series TC15 0820058601
