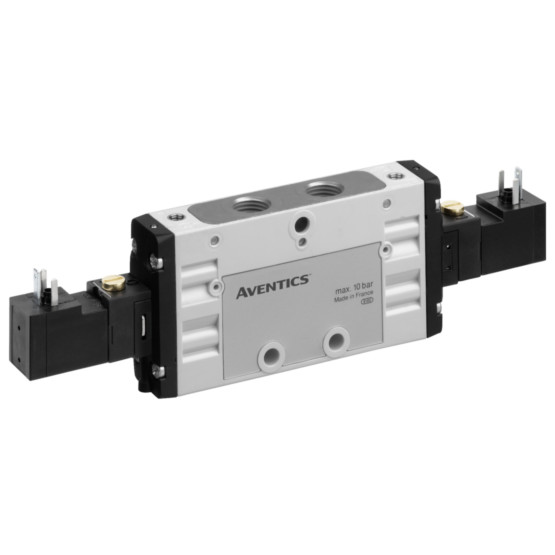

Aventics TC15-5/3CC-SR-NOCOIL-E-WD-SGL Electric and Pneumatic Actuated Directional Valve

Single valve, Spool valve, Pipe connection. View other configurations.

Aventics TC15-5/3CC-SR-NOCOIL-E-WD-SGL Electric and Pneumatic Actuated Directional Valve — Aventics-TC15-5/3CC-SR-NOCOIL-E-WD-SGL

Call for pricing

Part Numbers

TC15-5/3CC-SR-NOCOIL-E-WD-SGL
R422103073

Highlights...

TC15-5/3CC-SR-NOCOIL-E-WD-SGL
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Activation: Electrically
Compressed air connection output: G 1/4
Electrical Connection 2: ISO 15217, form C
Flow L M: 1300 l/min
Housing Material: Polyamide fiber-glass reinforced
Industry: Industrial
Manual Override: with detent
Max Working Pressure: 10 bar
Min Working Pressure: -0.9 bar
Seat Seal Type: Soft seal
Valve Configuration: Basic valve without coil
Valve Function: Closed Center
Valve Pilot: External
Dimension: 7.87x2.36x0.79 (inches)

View other configurations.

AVENTICS 5/3-directional valve, Series TC15 R422103073
